FLEXMOVE
Article code: flexmove
Applicable for:
Fast and simple installation using complete conveyor systems
Flexible conveyor system design using individual components
Efficient product transport across a wide range of manufacturing industries
Almost any material handling application requiring high-quality, innovative design
Custom configurations with unique features to handle a broad variety of products

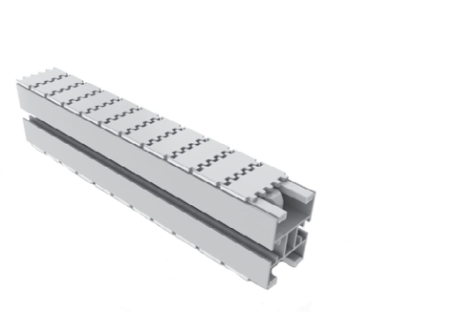

FK WIDTH 45mm
The FK-45 Series is a compact conveyor solution designed for small products and high-speed transport applications.
Its compact design makes it suitable for production lines where space is limited, while still ensuring reliable and efficient product handling.

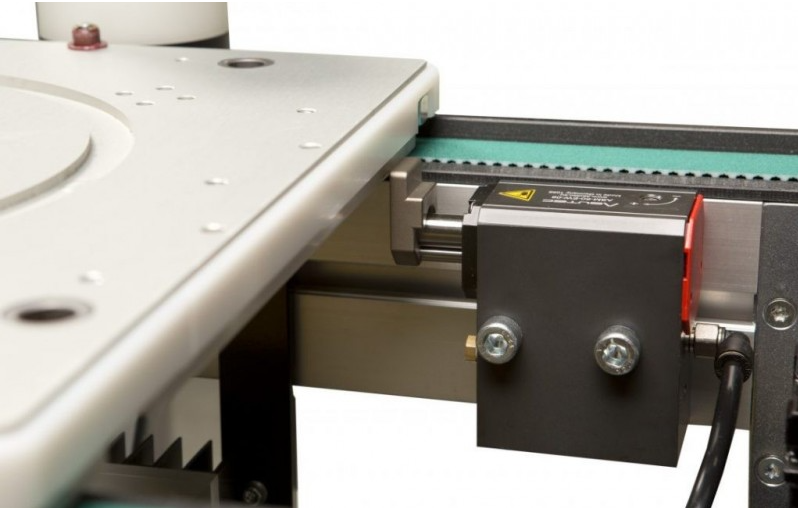

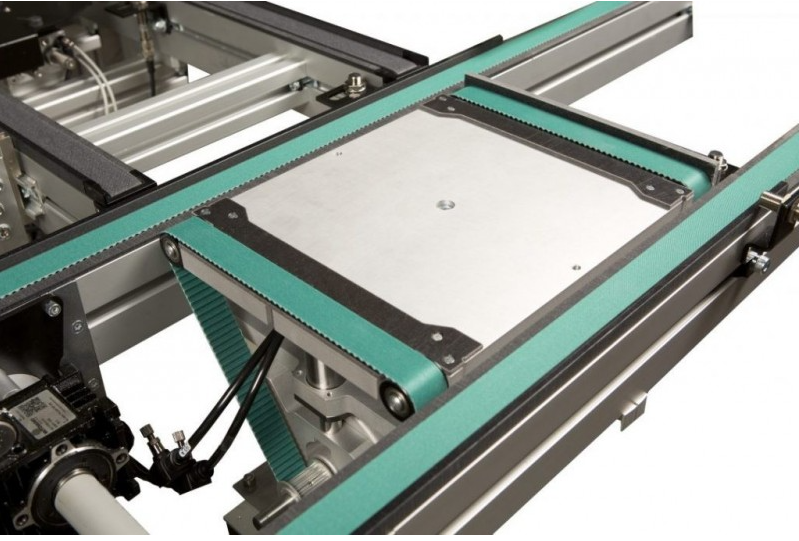

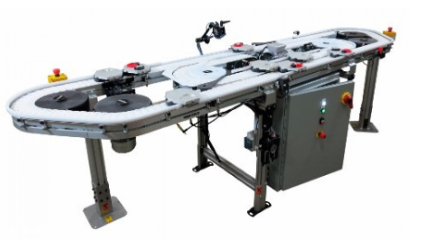

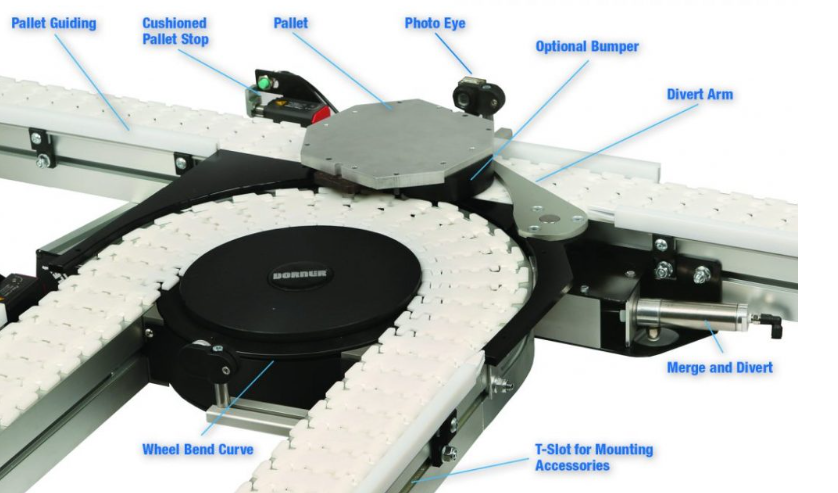

The system can also be used for dual-lane pallet conveyor lines, where two parallel transport paths are required.
• Perfume bottles
• Pharmaceutical vials

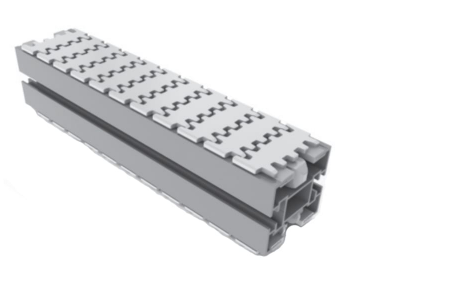

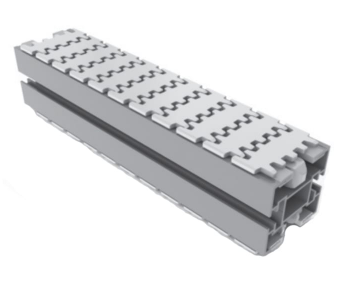

FS WIDTH 65mm
The FS-65 Series is a versatile conveyor solution engineered for mid-sized components and streamlined transport across diverse production setups.
Its balanced design allows for seamless integration into multi-stage assembly lines, offering excellent stability and optimal space utilization.
The system is highly adaptable, making it a preferred choice for standard packaging, labeling, and automated sorting processes.
• Cosmetic jars
• Small electronic devices

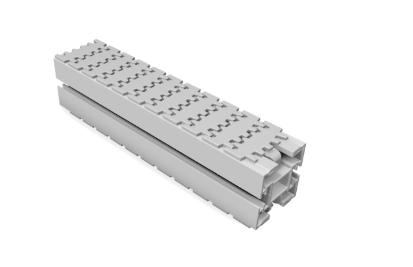

FM WIDTH 85mm
The FM Series is suitable for a wide range of applications, including both horizontal and vertical product transport. Compared to the FK and FS Series, it offers higher performance and capacity.
The system uses a plastic multi-flexing chain for horizontal and vertical direction changes. Special-purpose chain options are also available.
• Paper tissues & yogurt products
• Plastic bottles & small boxes
• Coffee, tea & snack packages
FC WIDTH 105mm
The FC Series is suitable for a wide range of applications, including both horizontal and vertical product transport. It offers higher performance and capacity compared to the FK, FS, and FM Series.
The system uses a plastic multi-flexing chain for horizontal and vertical direction changes. Several special-purpose chain options are also available.
• Larger boxes

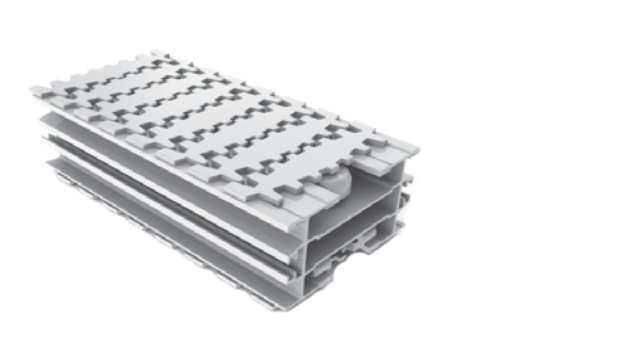

FL WIDTH 150mm
The FL Series is suitable for a wide range of applications, including both horizontal and vertical product transport. It is especially suitable for larger products, offering higher performance and capacity compared to the FK, FS, and FM Series.
The system uses a plastic multi-flexing chain for horizontal and vertical direction changes. Several special-purpose chain options are also available.

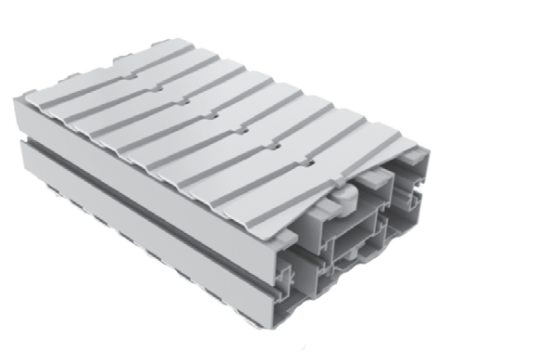

FU WIDTH 180mm
The FU Series is suitable for a wide range of applications, including both horizontal and vertical product transport.
It is especially suitable for larger products, offering the highest performance and capacity compared to the FK, FS, FM, FC, and FL Series.

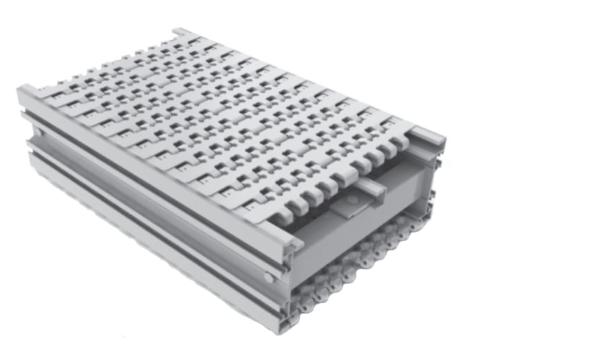

FV WIDTH 260mm
The FV series is suitable for a wide range of applications, with the added benefit of a wide chain that enables efficient transport and accumulation in many different configurations.
It supports both horizontal and vertical product transport with various conveyor chain types. The maximum width of the transported product is flexibly defined by the side guides.

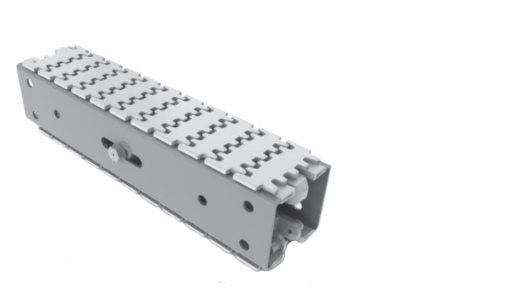

SS WIDTH 65mm
The SS Series is suitable for a wide range of applications, including both horizontal and vertical product transport.
The system uses a plastic multi-flexing chain that enables direction changes both horizontally and vertically. In addition to standard chain types, several special-purpose chain options are also available.

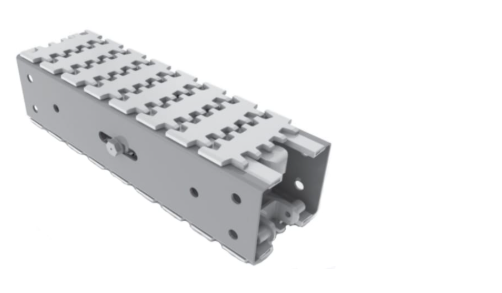

SM WIDTH 85mm
The SM Conveyor is suitable for a wide range of applications, including both horizontal and vertical product transport.
The system is available with different types of conveyor chains. SM multi-flexing conveyor systems use a plastic chain that enables direction changes both horizontally and vertically. In addition to standard chain types, several special-purpose chain options are also available.

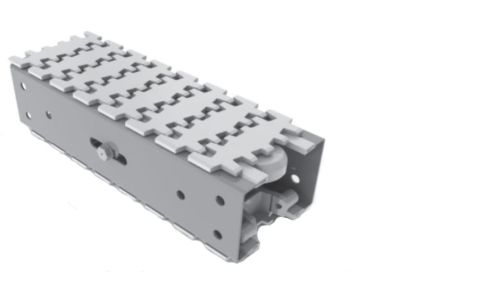

SC WIDTH 105mm
The SC Series is suitable for a wide range of applications, including both horizontal and vertical product transport. It offers higher performance and capacity compared to the SS and SM Conveyors.
The system uses a plastic multi-flexing chain that enables direction changes both horizontally and vertically. In addition to standard chain types, several special-purpose chain options are also available.
SU WIDTH 180mm
The SU Series is suitable for a wide range of applications, including both horizontal and vertical product transport.
The system uses a plastic multi-flexing chain that enables direction changes both horizontally and vertically. In addition to standard chain types, several special-purpose chain options are also available.

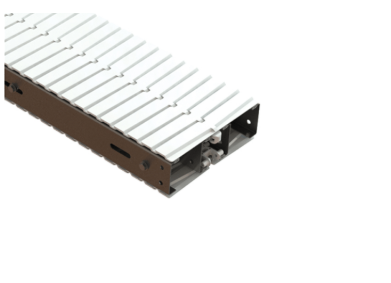

SV WIDTH 260mm
The SV Series is suitable for a wide range of applications, including both horizontal and vertical product transport.
The system uses a plastic multi-flexing chain that enables direction changes both horizontally and vertically. In addition to standard chain types, several special-purpose chain options are also available.

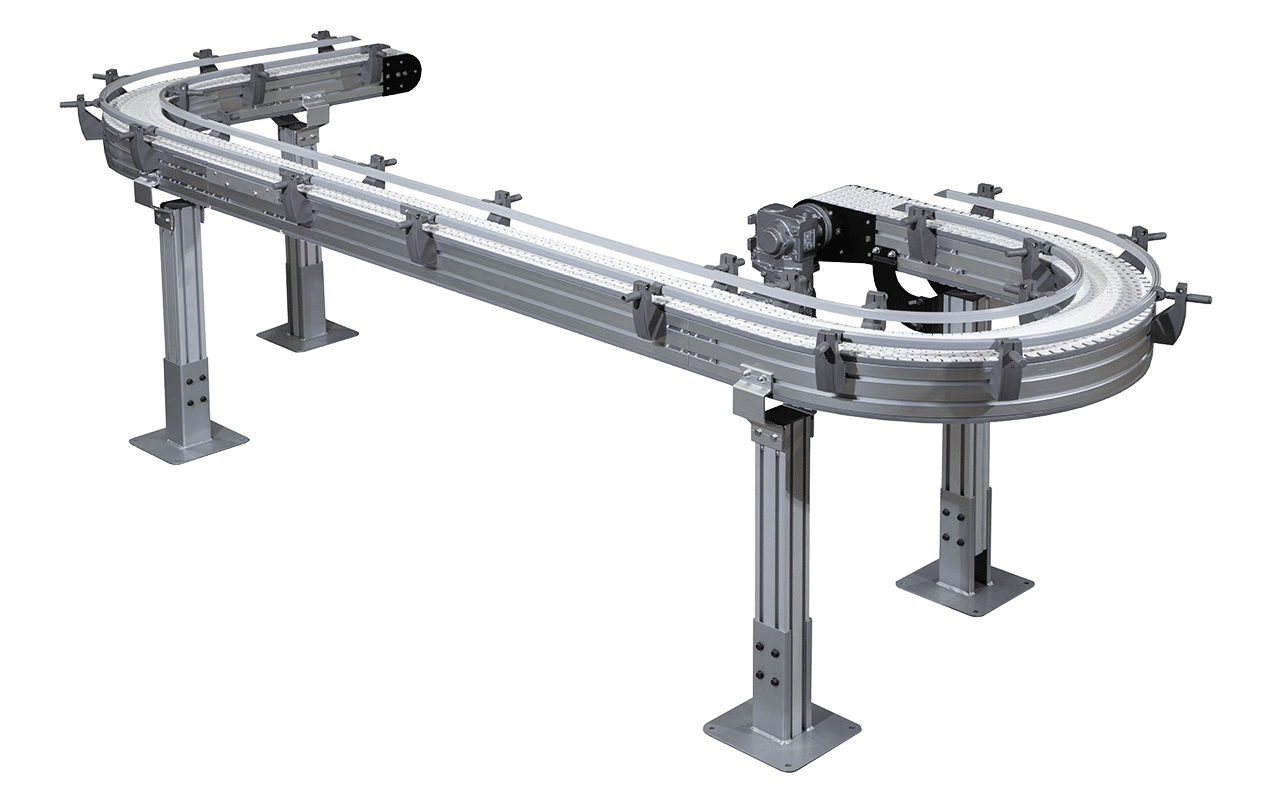

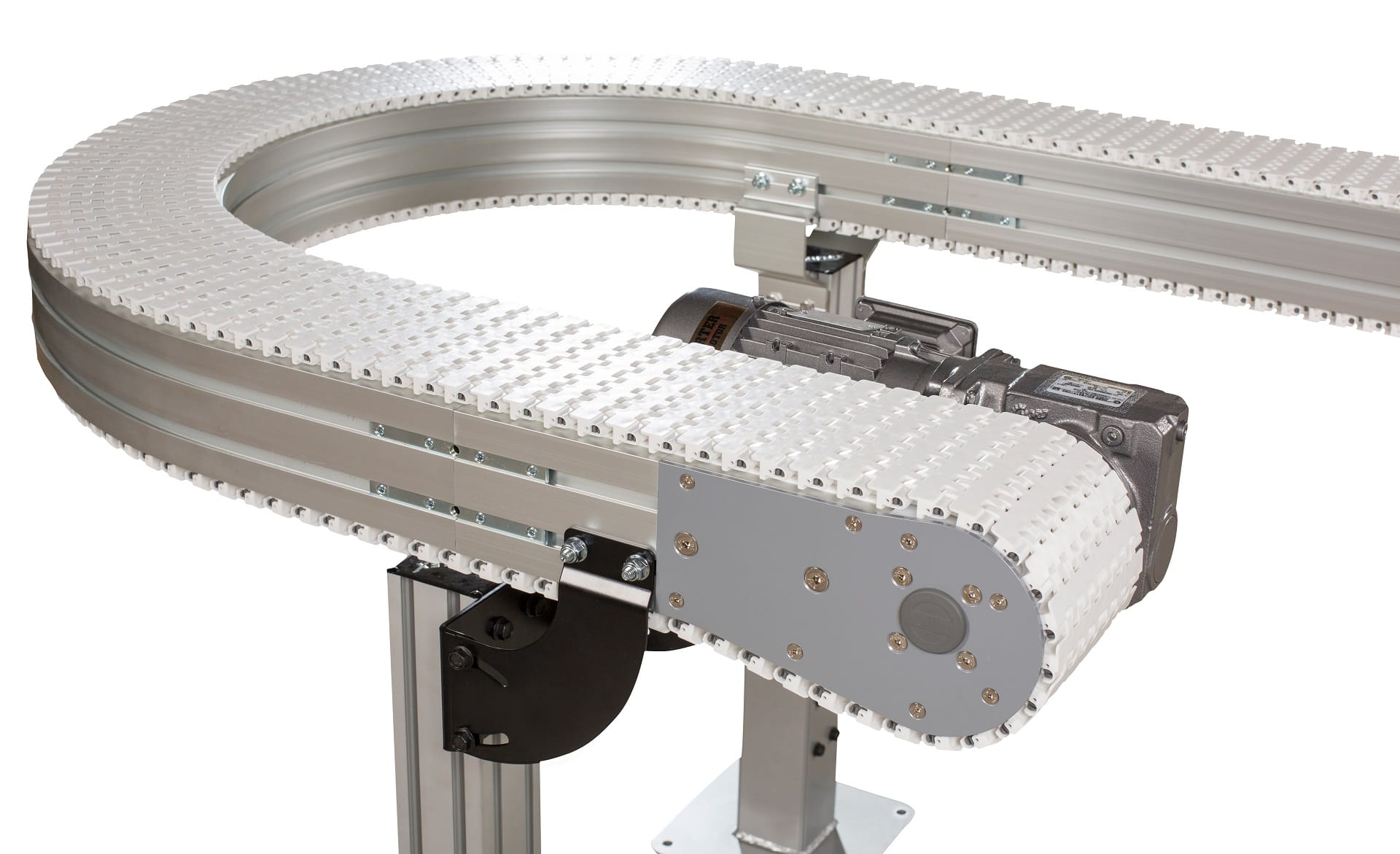

FlexMove FX Series
Advanced modular plastic belt conveyors engineered for ultimate layout flexibility and space-saving performance. Designed to handle complex configurations, tight spaces, and small part transfers with industry-leading safety standards.
| Parameter | Specification |
|---|---|
| Standard Widths | 152 mm, 304 mm, 457 mm, 609 mm |
| Maximum Length | Up to 20 m |
| Maximum Load | Up to 272 kg |
| Maximum Speed | Up to 50 m/min |
| Turn Radius | 2X the belt width |
| Min. Part Transfer | Down to 75 mm (with driven bridge option) |

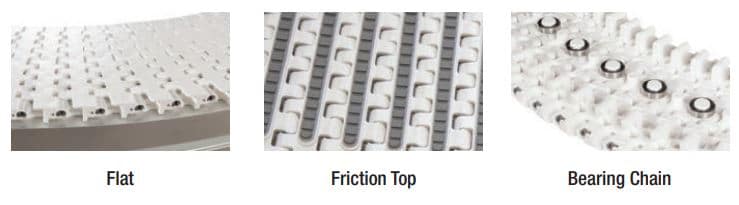

Chain types

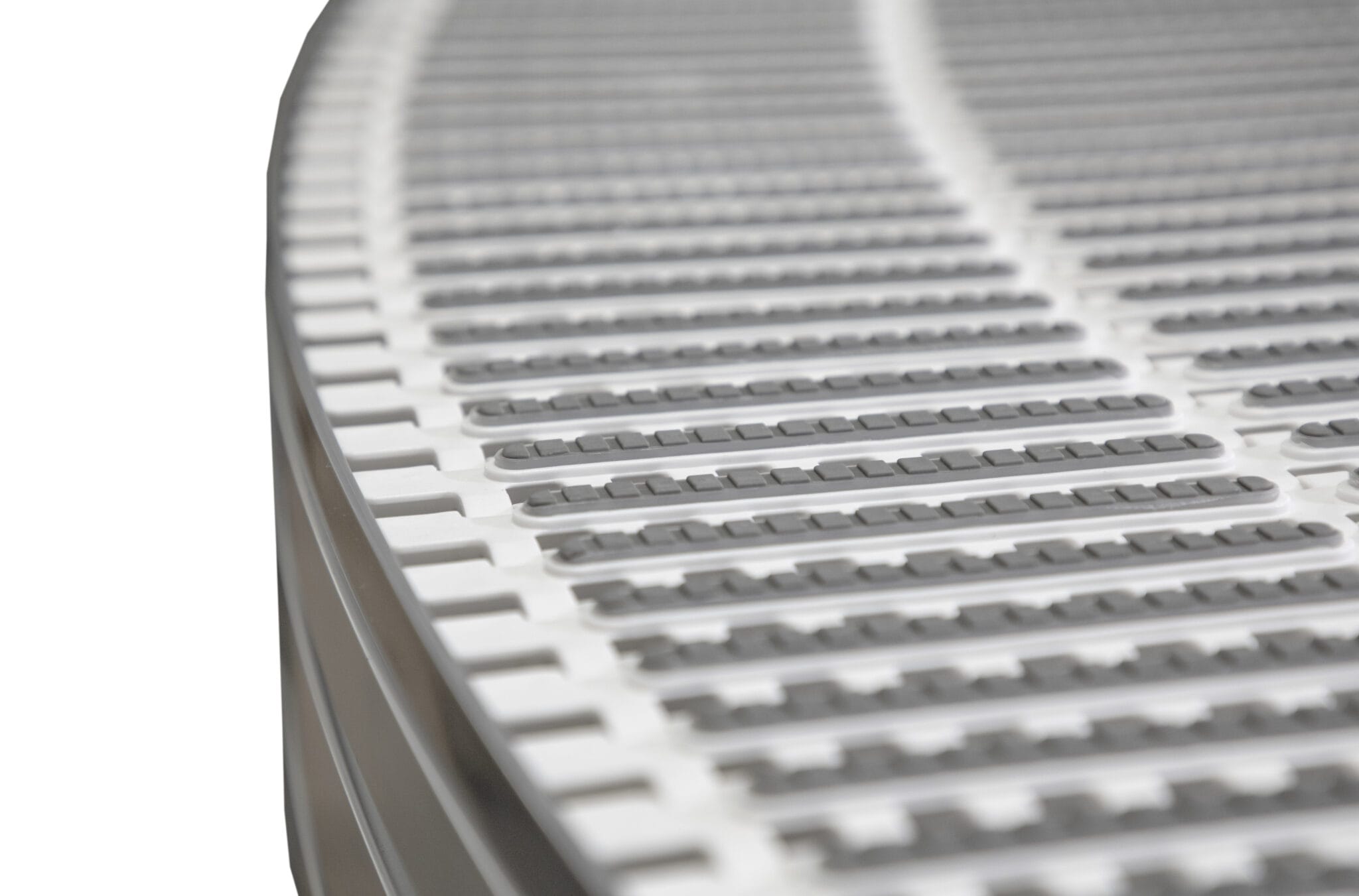

Available chain types include Low Friction for smooth transport, High Friction Insert for inclines, Center Bearing for tight curves, and Non-Bearing Chain optimized for straight runs.

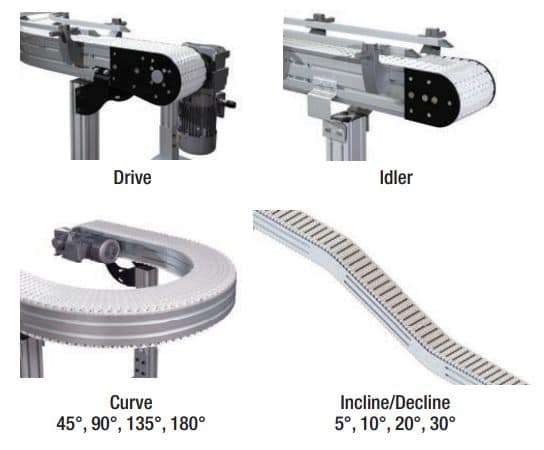

Modules
Standard system modules include Drive for efficient powering, Idler for smooth chain tensioning and return, Curve (available in 45°, 90°, 135°, and 180° angles) for directional changes, and Incline/Decline (available in 5°, 10°, 20°, and 30° angles) for reliable vertical height transitions.
