PALLET CONVEYOR SYSTEMS
Applicable for:
Heavy load and euro-pallet transport
Automated warehouse intralogistics
Palletizing & packaging line integration
Direction changing, sorting, and pallet stacking
High-durability manufacturing environments
Available Modules & Components
LEOSS Pallet Roller Conveyor
LEOSS Pallet Chain Conveyor
LEOSS Shuttle Roller Conveyor
LEOSS Pallet Turntable
LEOSS Pallet Buffer
LEOSS Corner Station with Lifting Unit

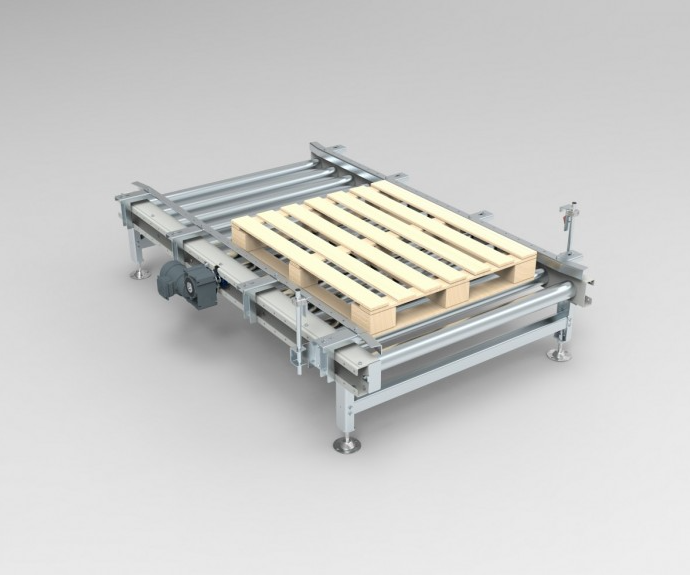

LEOSS Pallet Roller Conveyor
-
A robust pallet roller conveyor designed for automated pallet transport in production, logistics and internal material flow systems.
- Technical specifications:
- Heavy steel construction, painted in any standard RAL colour
- Heavy-duty Fi89x3 rollers with 182.5 mm spacing
- Steel conveyor chain transmission
- Height-adjustable galvanized legs
- Side-mounted Nord Drivesystems drive
- Photocell and reflector with brackets included

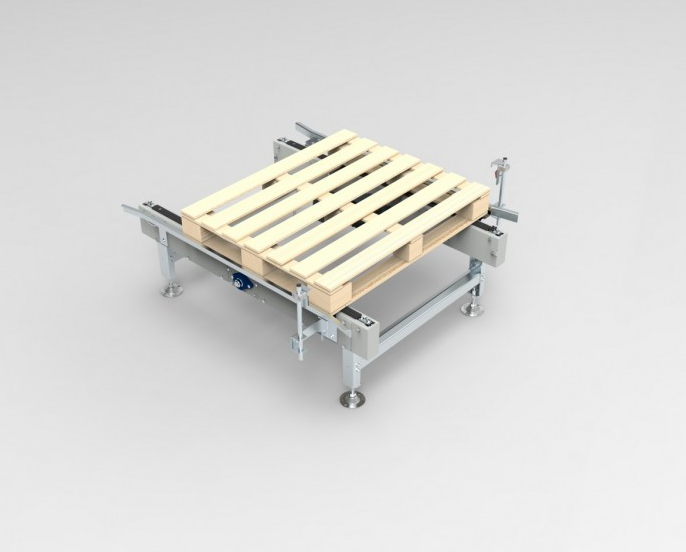

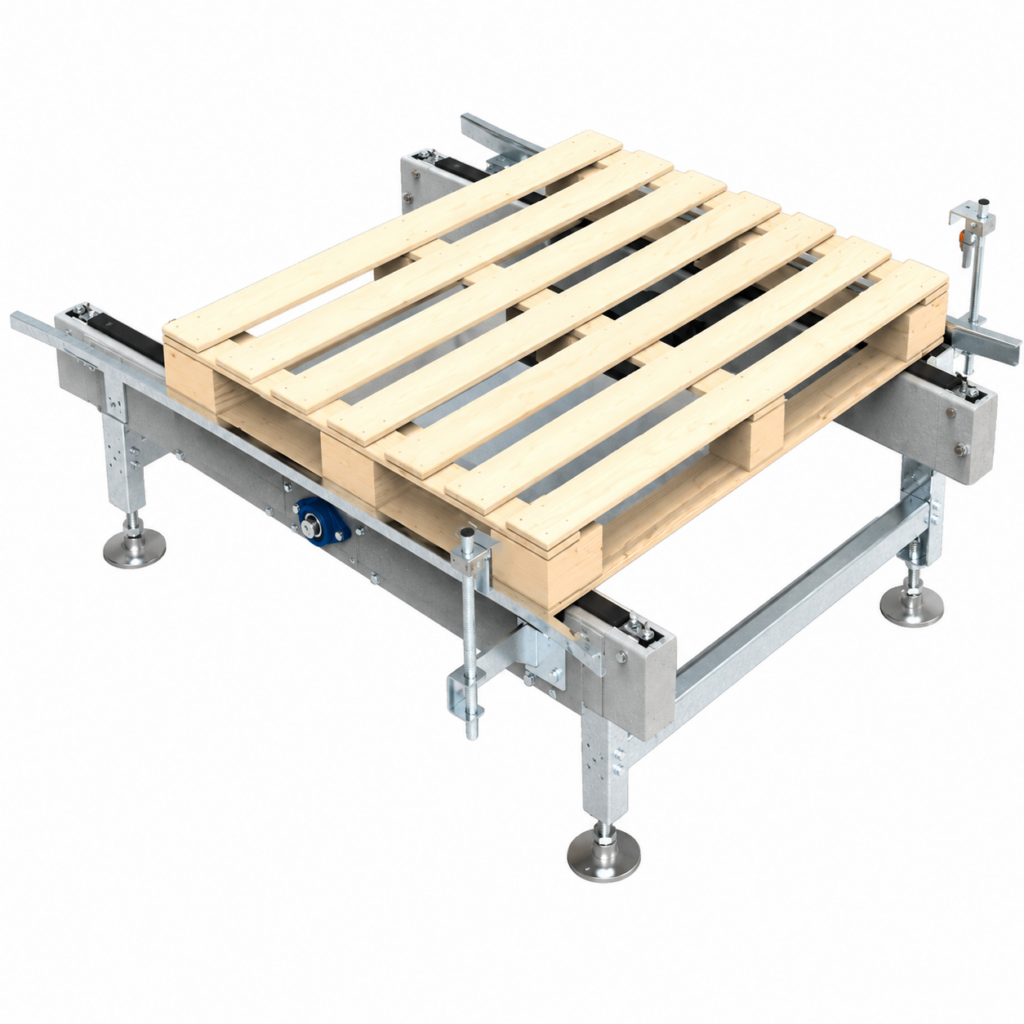

LEOSS Pallet Chain Conveyor
-
A strong and simple solution for moving empty or full pallets. Built from modular sections, it can be easily adapted to different layouts and keeps the chain properly tensioned automatically.
- Technical specifications:
- Heavy-duty steel construction, painted in any standard RAL color.
- Modular straight sections suitable for empty or full pallets.
- Height-adjustable legs.
- Duplex 5/8" chain.
- Shaft-mounted motor.
- Available with two or more chain lines.
- Photocell and reflector with brackets included
- Automatic chain tensioning system.

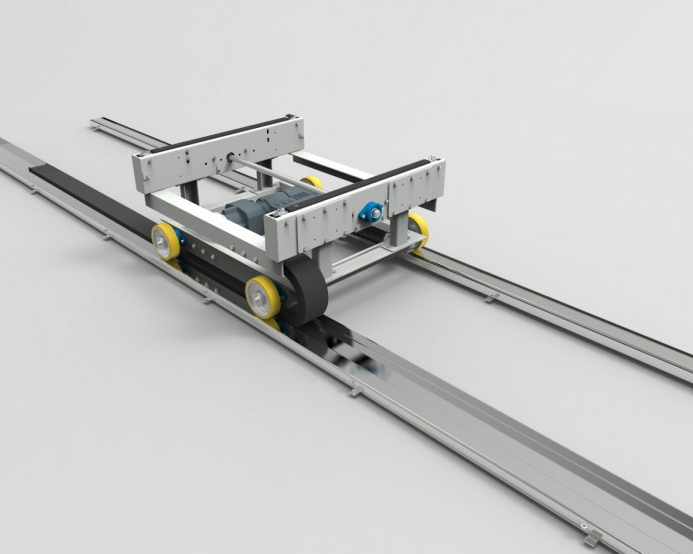

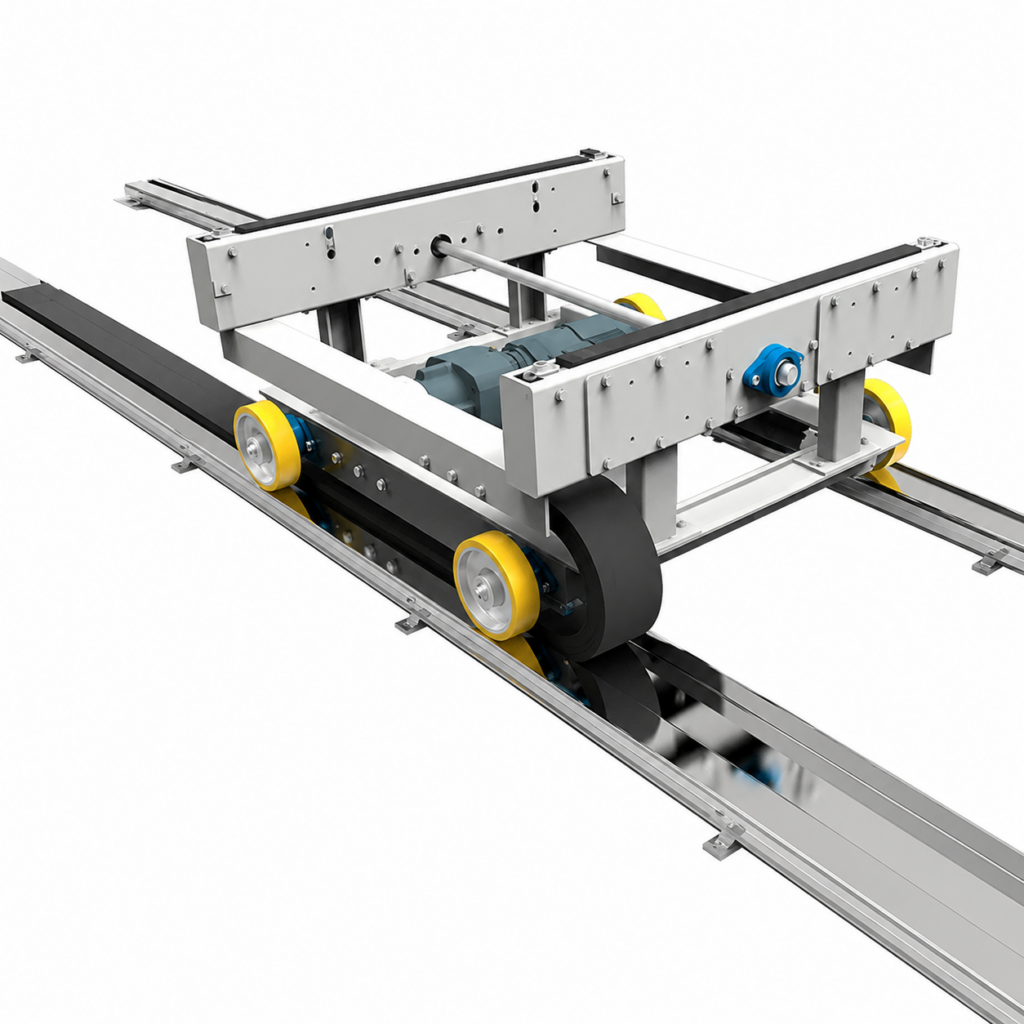

LEOSS Shuttle Roller Conveyor
-
A heavy-duty rail-guided transfer conveyor with motor-driven wheels, full-length cable chain, optional chain or roller conveyor, and integrated photocell safety detection.
- Technical specifications:
- Heavy-duty steel construction, painted in any standard RAL color.
- Motor-driven wheels with drive transmission to all 4 wheels.
- Guide wheels for rail guidance.
- Shaft-mounted motor.
- Cable chain along the full length of the rails.
- Available with a chain or roller conveyor.
- Including photocell and reflector with mounting brackets.

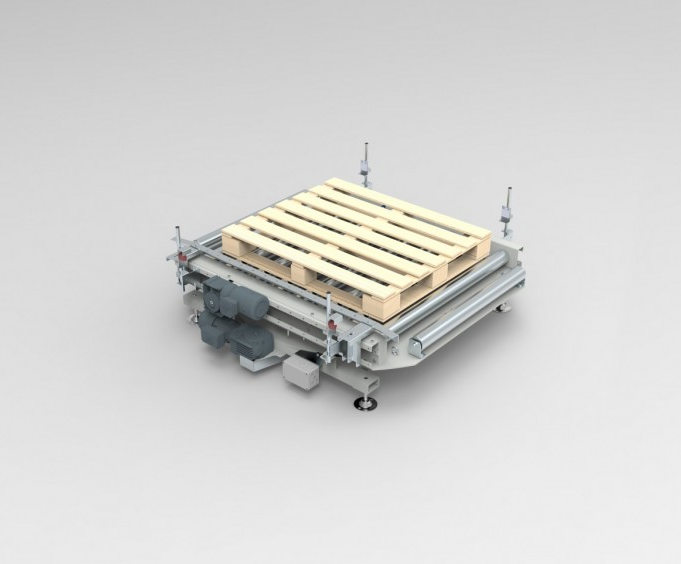

LEOSS Pallet Turntable
-
A compact pallet turning table for changing direction or rotating full and empty pallets smoothly within a conveyor line.
- Technical specifications:
- Rotary table used to change the direction or rotate full and empty pallets.
- Available with roller or chain conveyor.
- Powder-coated frames.
- Height-adjustable legs.
- Duplex 5/8" chain.
- Heavy-duty rollers.
- Side-mounted motor for easier access.
- Motorized turning mechanism with encoder.

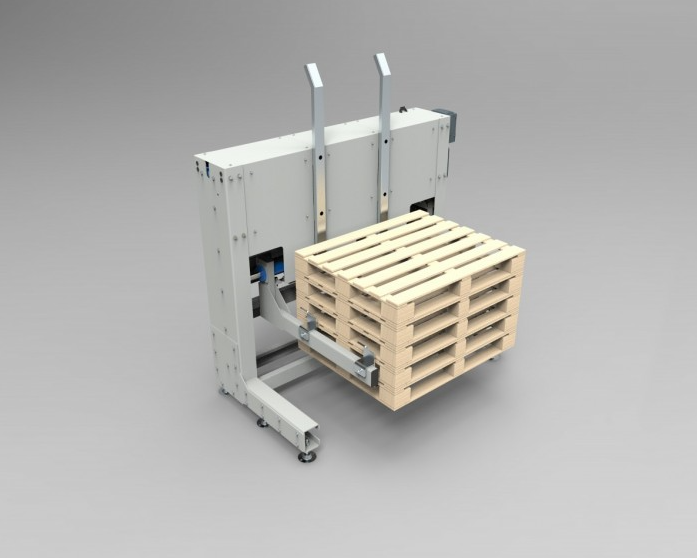

LEOSS Pallet Buffer
-
A practical solution for stacking or destacking empty pallets, with electric lifting, adjustable forks and built-in sensors.
- Technical specifications:
- Stacking or destacking of empty pallets.
- Lifting pallet sets with an electric motor.
- Pneumatic fork closing / motorized fork closing when handling different pallet dimensions.
- All sensors included.
- Up to 12 pallets.
LEOSS Corner Station with Lifting Unit
-
A modular pallet transfer unit designed to change pallet orientation smoothly and reliably within an automated conveyor line.
- Technical specifications:
- Modular sections for changing the orientation of empty or full pallets.
- Single or double design.
- Powder-coated frames.
- Height-adjustable legs.
- Duplex 5/8" chain.
- Heavy-duty rollers.
- Motorized lifting mechanism with encoder.
- Side-mounted motor for easier access.
