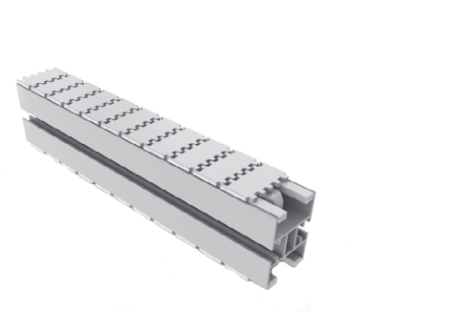

FK-45 Series Conveyors
The FK-45 Series is a compact conveyor solution designed for small products and high-speed transport applications. Its compact design makes it suitable for production lines where space is limited, while still ensuring reliable and efficient product handling. The system can also be used for dual-lane pallet conveyor lines, where two parallel transport paths are required.
Benefits of FK 45 mm Aluminum Conveyors
FK Series is a compact and neat design for small items and fast transportation. It is also used for twin track application for pallet assembly line.
Different Conveyor Chain Types
The FK multi-flexing conveyor systems uses a plastic chain that permits horizontal as well as vertical change of direction. In addition to the standard types, several special purpose chains are available.
Examples of Products Handled
Perfume bottles, pharmaceutical bottles.
| Parameter | Specification |
|---|---|
| Conveyor Chain Width | 45 mm |
| Min. Turning Radius | 150 mm |
| Link Spacing | 25.4 mm |
| Item Width Range | 35-500 mm |
| Max. Item Weight | 10 kg |
| Max. Weight on Conveyor | 150 kg |
| Max. Conveyor Length | 30 m |
| Standard Conveyor Speed | 3-50 m/min |
| Tensile Strength (at 20ºC) | 4000 N |
| Max. Working Tensile (at 20ºC) | 500 N |
| Chain Weight (Plain) | 0.63 kg/m |
| Working Temperature | -20ºC – 60ºC |
