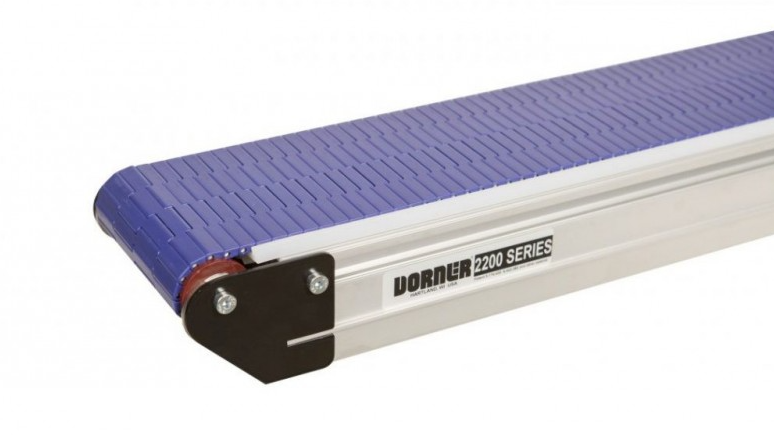

SERIES 2200

Article code: series-2200

Applicable for:



General material handling applications

High-speed knife-edge transfer requirements

Systems requiring durable single-piece frame construction

Applications needing flexible mounting via universal T-slots

Custom setups with a wide range of belt and guiding options

READ MORE
Previous
Next

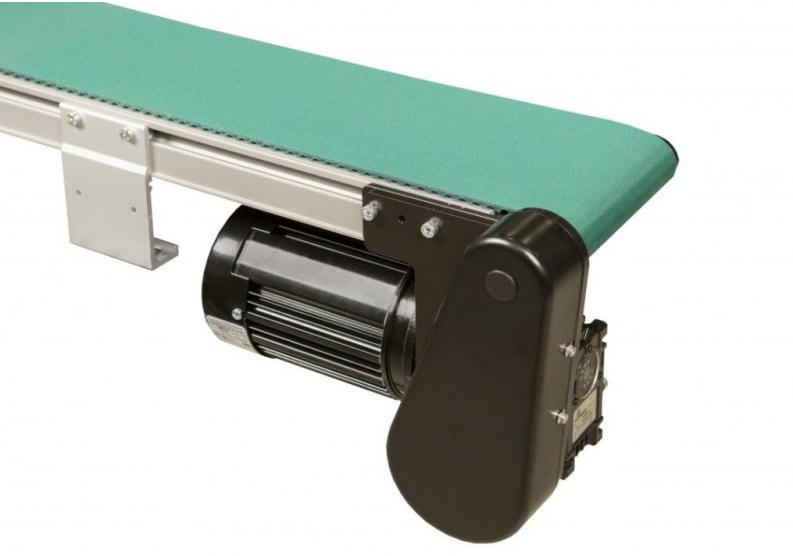

Belted & LPZ Conveyors

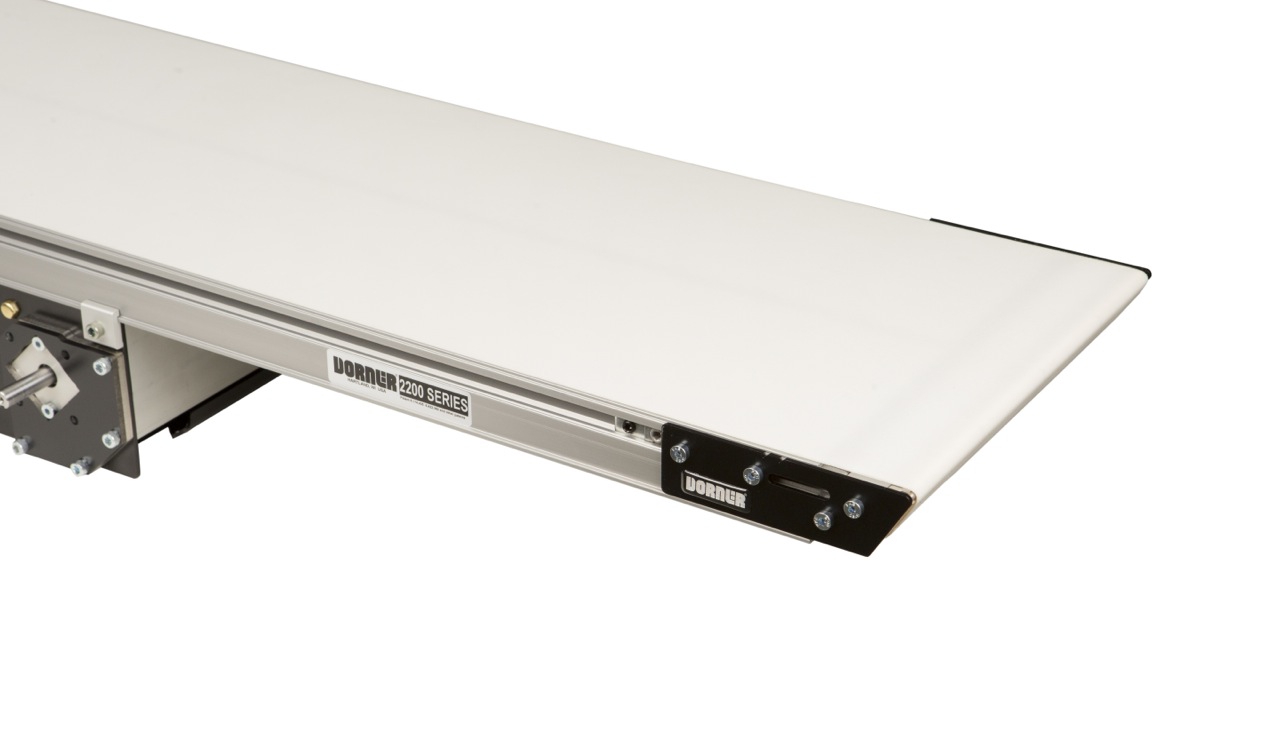

High-performance, low-profile belt conveyors engineered for versatile small-to-medium part handling. Features an ultra-compact, rigid frame with hard-anodized coating, and flexible LPZ (Z-frame) configurations for seamless elevation changes.

Optimized for Small Part Handling

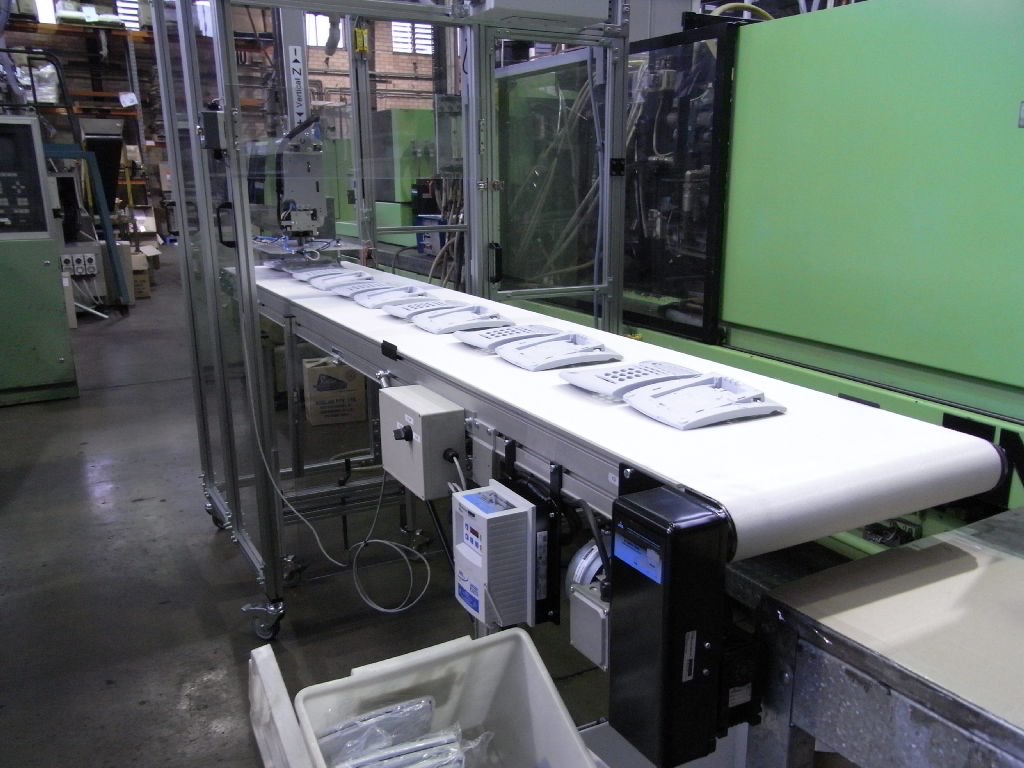

Perfect for precise transfers, part accumulation, positioning, and automated assembly lines.

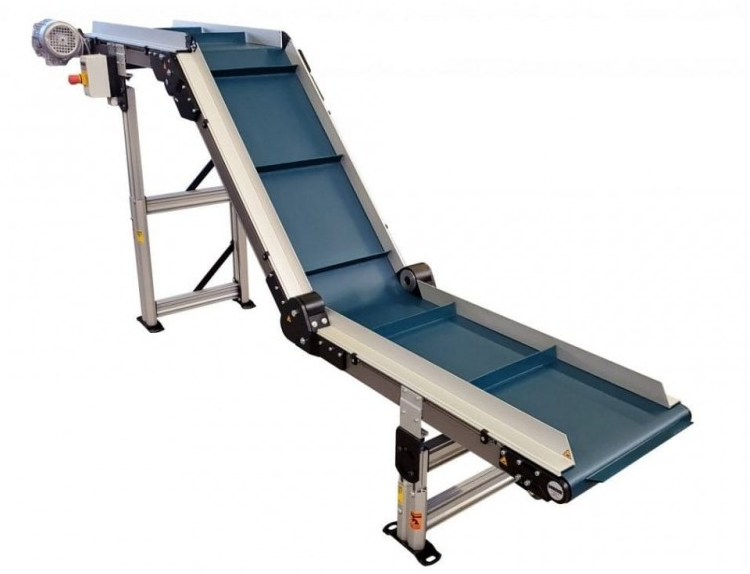

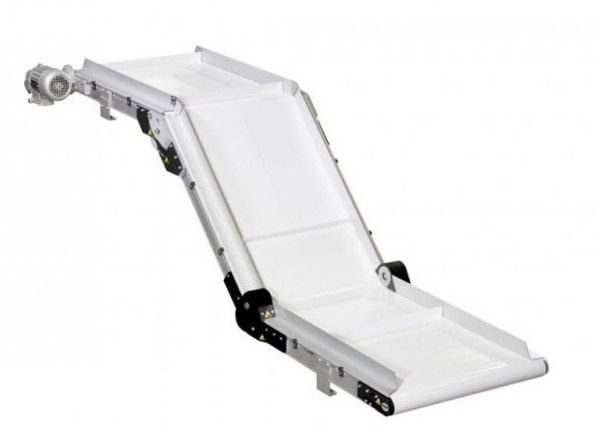

Z-Frame Elevation (LPZ)
Designed for lifting and lowering operations to bridge vertical height differences.
Rigid Low-Profile Design
Features a single-piece frame construction (for widths ≤ 305 mm) with a durable, hard-anodized bedplate.
Integrated T-Slots
Universal T-slots along the frame easily fit industry-standard hardware, sensors, brackets, and accessories.

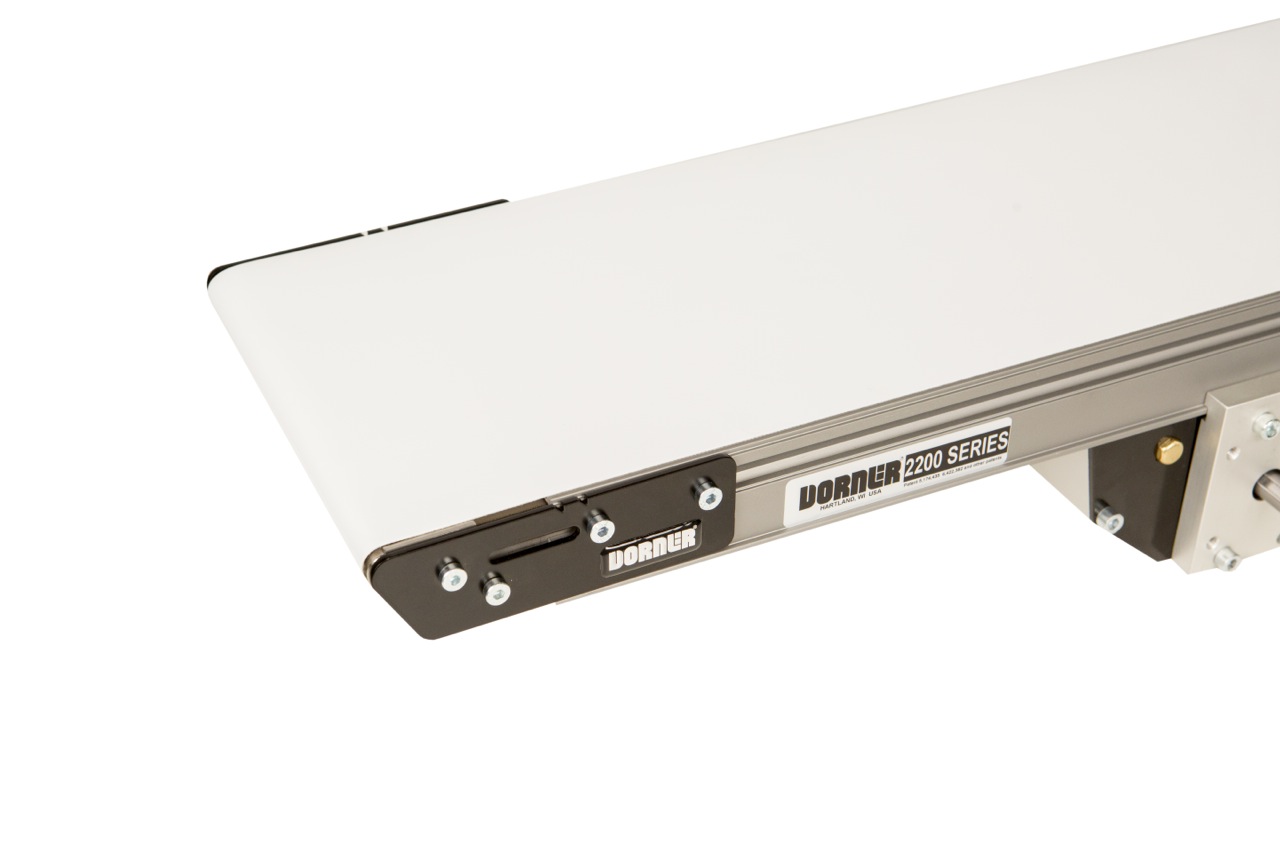

High-Speed Nose Bar Option
16 mm high-speed nose bar supports speeds up to 61 m/min for extremely small parts.
Easy Maintenance & Adjustments

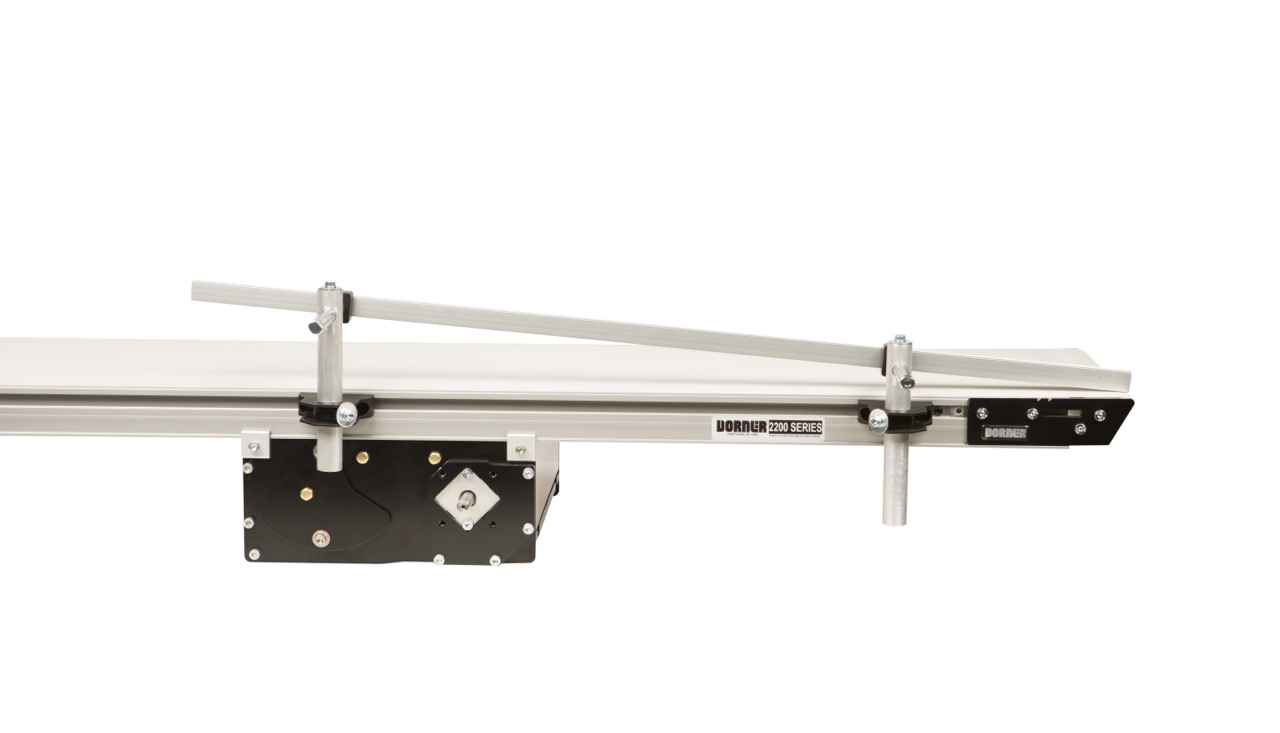

Removable drive and idler tails for quick belt installation, paired with a modern adjustable guiding clamp system.
ParameterSpecification
Drive OptionsEnd Drive, Mid Drive, Center Drive (Optional Common Drive)
Conveyor Widths44 mm – 914 mm
Conveyor Lengths457 mm – 7,315 mm
Max. Load CapacityUp to 54 kg
Max. Belt SpeedUp to 122 m/min
Belting Options40 Standard Belting Options available
GearmotorsSealed (Light, Standard, or Heavy Load options)
Previous
Next

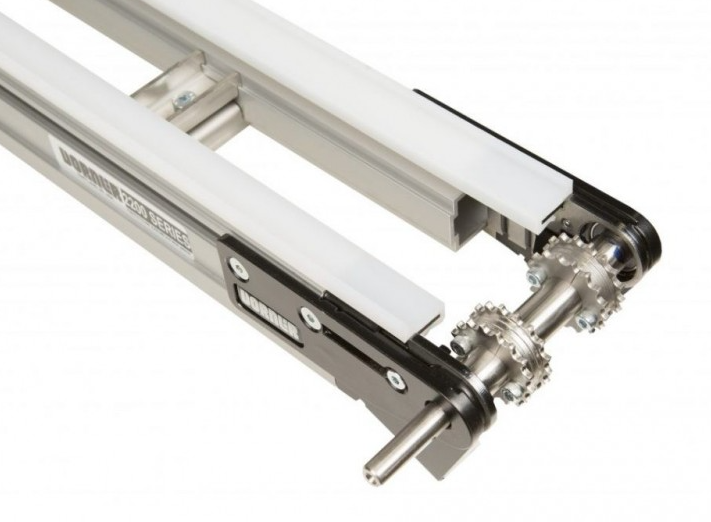

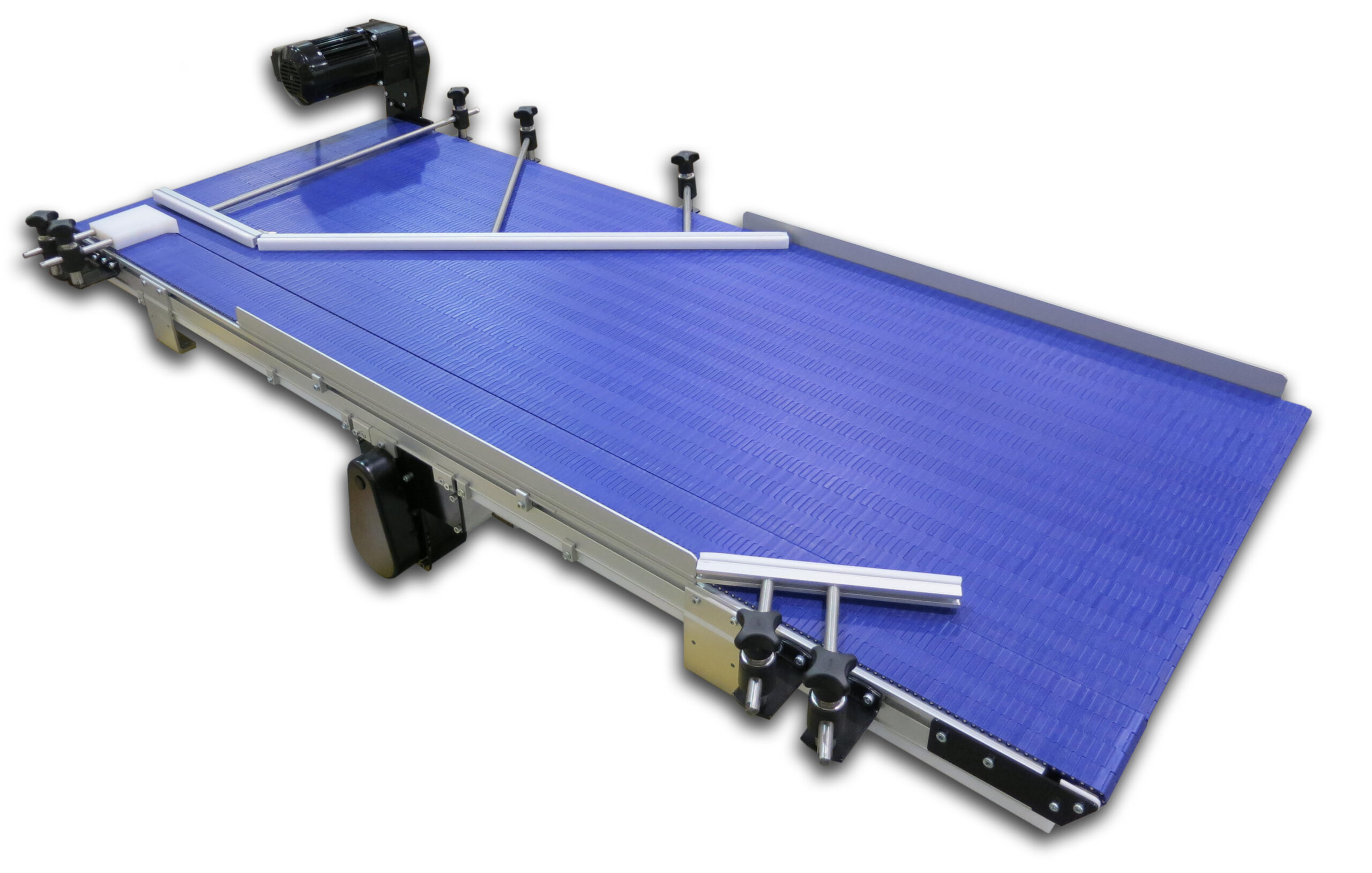

Modular Belt Conveyors

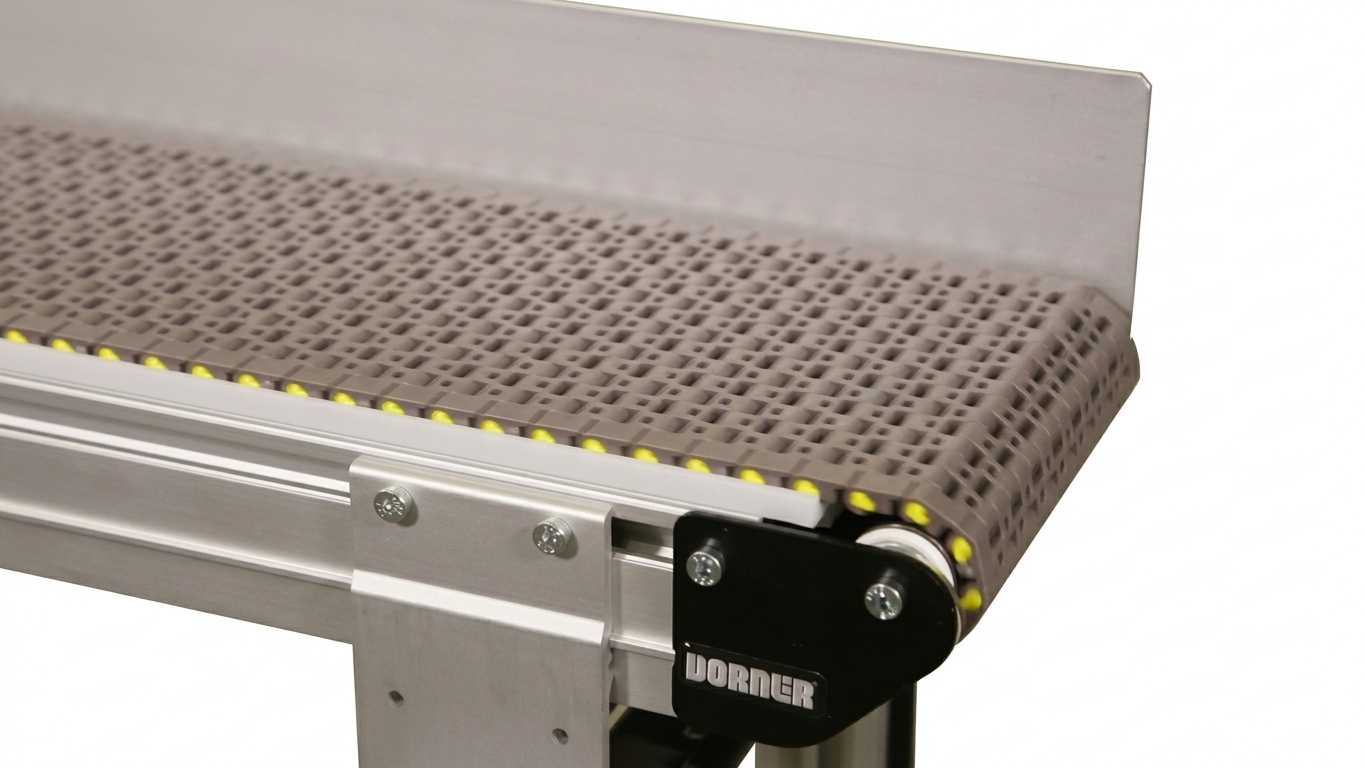

Advanced modular plastic belt conveyors featuring an open, ladder-style frame designed for optimal water and chemical drainage or air cooling. Built for minimal maintenance with fully guided UHMW wear strips, making them ideal for high-end automation, part accumulation, and small-to-medium product transfers.

Open Ladder-Style Frame Engineered with an open construction to allow efficient water and chemical drainage, as well as improved air cooling for warm parts.
Low-Maintenance Belt Guiding All modular plastic belts are fully contained and guided in durable UHMW wear strips, ensuring accurate tracking and maintenance-free operation.
Versatile Automation Applications Perfectly suited for small part transfers, safe product accumulation, part/package infeed/outfeed, and both automated and manual assembly processes.
Universal Hardware Integration Features Dorner’s signature universal T-slot frame design, enabling easy and flexible installation of accessories, sensors, and brackets using standard industrial hardware.
Expandable Configuration Options Additional frame widths, extended guiding choices, and multiple chain configurations are available alongside a consolidated motor and control package for simplified system setup.
Parameter Specification
Drive Options End Drive, Center Drive, and iDrive models
Conveyor Widths 76 mm – 610 mm (3″ – 24″)
Conveyor Lengths 457 mm – 9,144 mm (18″ – 30′)
Max. Load Capacity Up to 68 kg (150 lbs)
Max. Belt Speed Up to 76 m/min (250 ft/min)
Chain Options Open mesh, closed mesh, and cleated chain options
Previous
Next

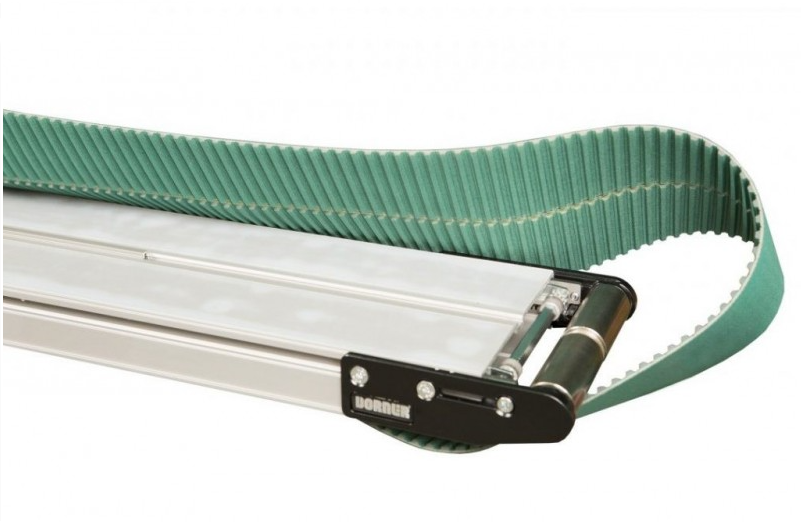

Precision Move Conveyors

Engineered for ultimate automation performance, Dorner’s Precision Move technology delivers parts to the exact location, at the exact time, and in the exact position required for the next phase of the production line. Featuring a positively driven timing belt and high mechanical accuracy, it is perfect for robotic integration and high-precision indexing.

Precision Movement & Indexing Perfectly designed for accurate small part handling, robotic pick-and-place applications, timed product transfers, and advanced precision motion automation.
Positive Tracking & Zero Slippage The reverse V-guide provides continuous positive tracking along the entire length, while the positively driven cogged belt eliminates slippage and allows for higher load capacities.
High Industrial Compatibility Features 23 unique gearbox mounting interfaces supporting more than 158 motor options, ensuring flawless machine integration and easy setup.
Smart Mechanical Design Built with an integrated 12 mm diameter drive shaft and a tip-up tail mechanism for effortless belt removal and quick system maintenance.
Parameter Specification
Mechanical Accuracy ± 0.51 mm (± 0.02″) / Servo Index: ± 1.02 mm (± 0.04″)
Conveyor Widths 25 mm – 610 mm (1″ – 24″)
Conveyor Lengths 457 mm – 9,144 mm (18″ – 30′)
Max. Load Capacity Up to 91 kg (200 lbs)
Max. Belt Speed Up to 113 m/min (370 ft/min)
Belt & Pulley Profile T10 profile timing belt | 12-tooth (End Drive) / 16-tooth (Mid Drive)
Drive Pulley Ratio 38 mm pitch diameter moves ~121 mm of belt per revolution
Previous
Next

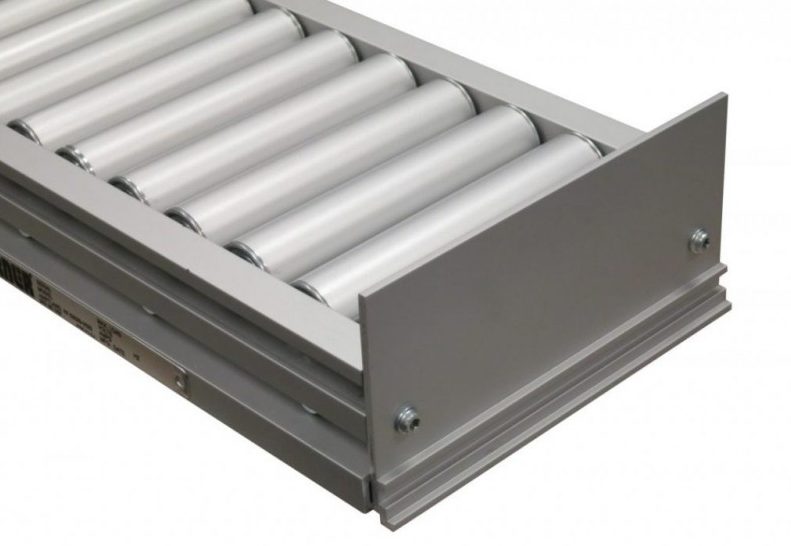

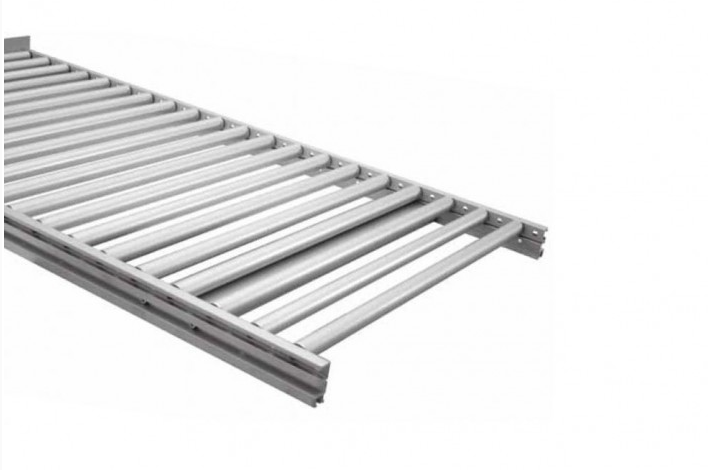

Gravity Roller Conveyors

An efficient, non-powered solution designed for smooth, gravity-assisted product movement. Built with highly durable, low-friction anodized aluminum rollers and steel ball bearings, these low-profile conveyors are ideal for simple material handling, packaging lines, and accumulative product flow.

Rigid Single-Piece Frame Construction Features rigid, single-piece aluminum frame lengths up to 3,658 mm (12′) to ensure precise roller alignment and quick, straightforward installation on any production line.
Low-Friction Anodized Aluminum Rollers Equipped with high-quality 25 mm (1″) diameter rollers made from anodized aluminum tubes, fitted with smooth-running steel ball bearings for effortless product flow.
Side T-Slot Accessory Mounting The integrated side T-slots are designed to directly fit Dorner drop-in hardware and standard M6 square nuts, making it extremely easy to mount guiding and brackets.
Flexible Roller Spacing Options Rollers can be configured on 31 mm (1.2″), 61 mm (2.4″), or 91 mm (3.6″) centers, allowing you to optimize the spacing for secure handling of different package sizes.
Parameter Specification
Max. Load Capacity Up to 119 kg/m (80 lbs/ft)
Conveyor Widths 152 mm, 305 mm, 457 mm, 610 mm
Conveyor Lengths 610 mm to 3,658 mm (in 152 mm increments)
Roller Dimensions 25 mm (1″) diameter rollers
Roller Centers (Spacing) 31 mm (1.2″), 61 mm (2.4″) or 91 mm (3.6″) centers
Roller Material Anodized aluminum tube with steel ball bearings
Frame Compatibility Integrated side T-slots (fits standard M6 square nuts)
