SERIES 1100
Article code: series-1100
Applicable for:
Moving small or lightweight products
Small part transfers

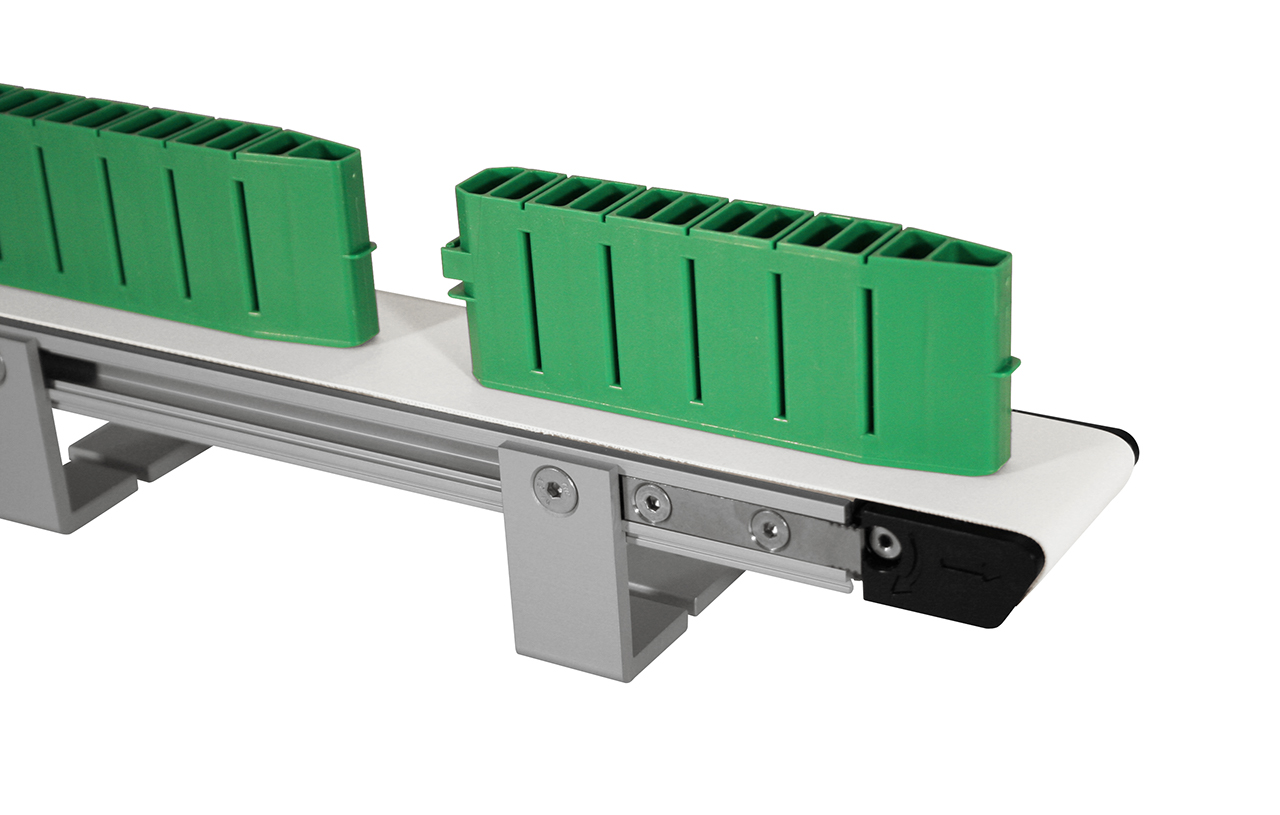

Tray handling

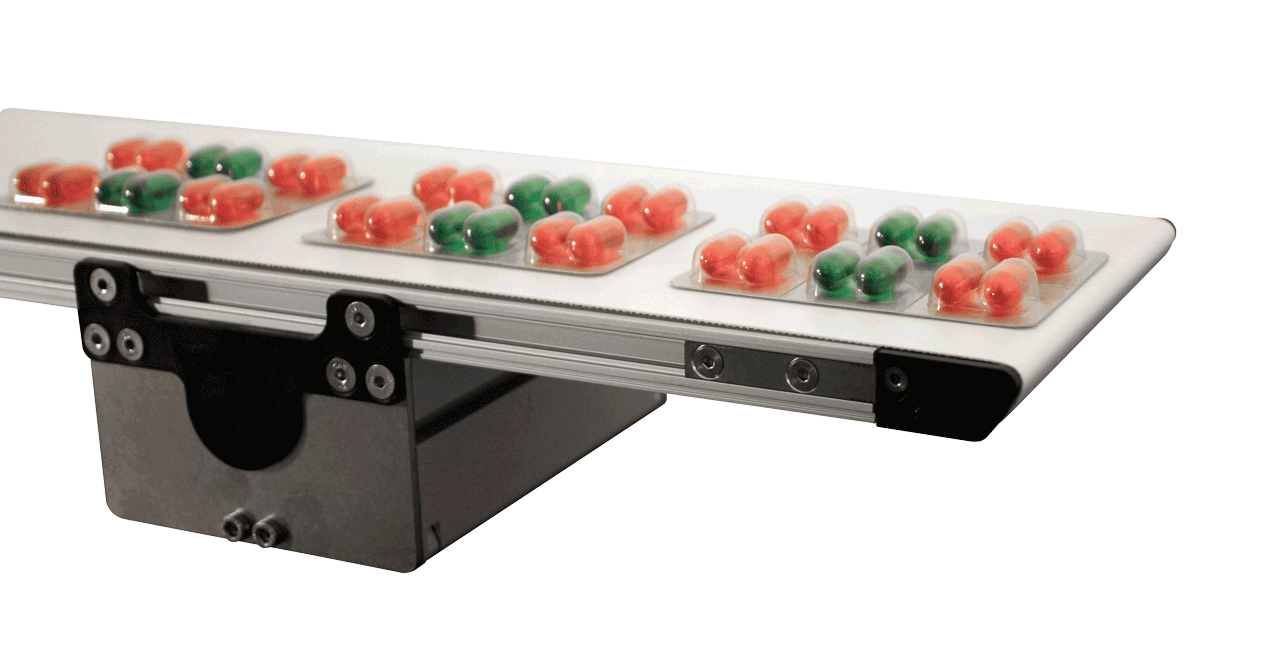

Tablet packaging handling
Package labeling
Pharmaceutical applications
Life science applications
Medical applications
Moving small or lightweight products
Medical applications
Pharmaceutical applications
| Drive Type | End drive with flat belt or center drive with flat belt |

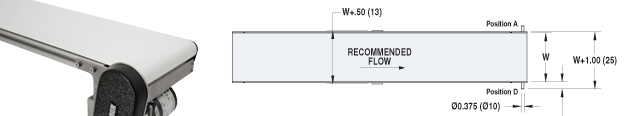

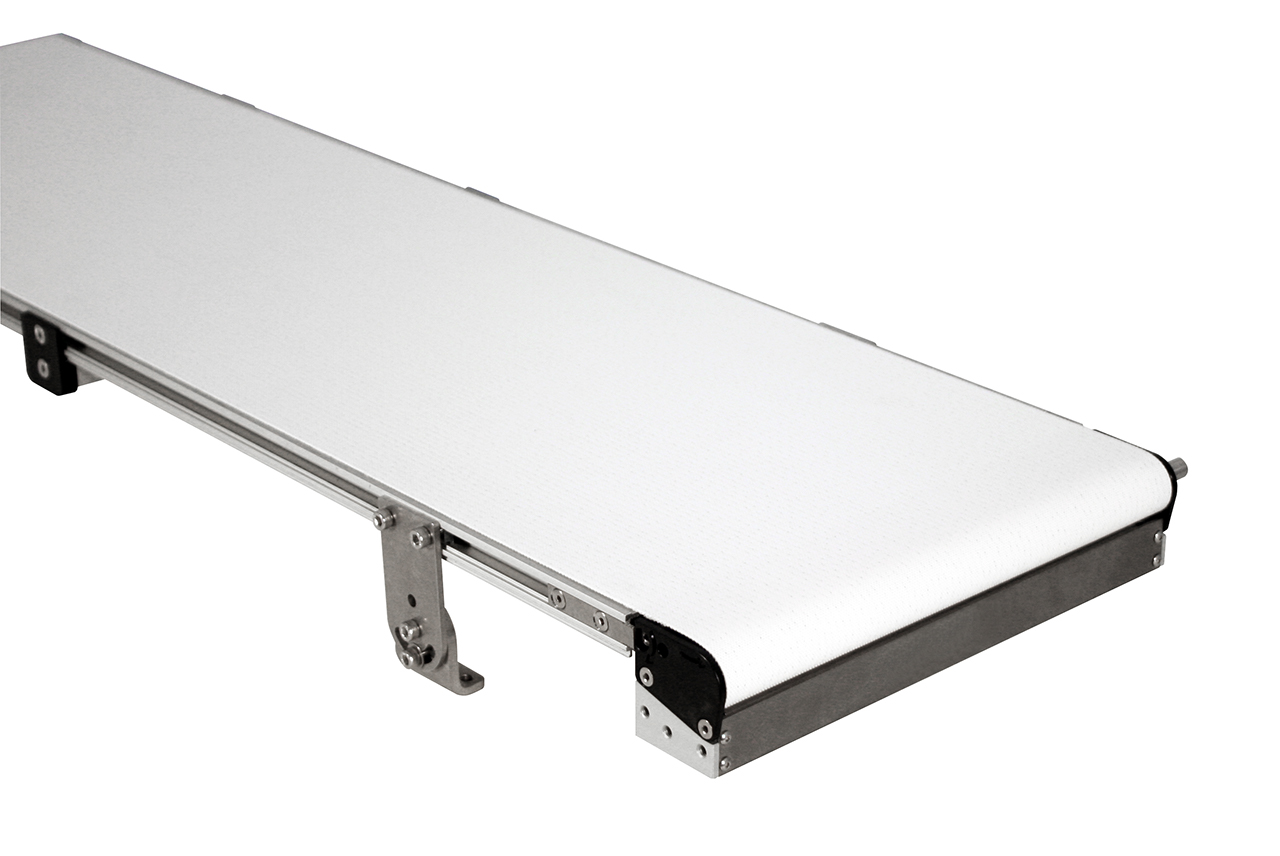

| End Drive | 25 mm diameter drive pulley |

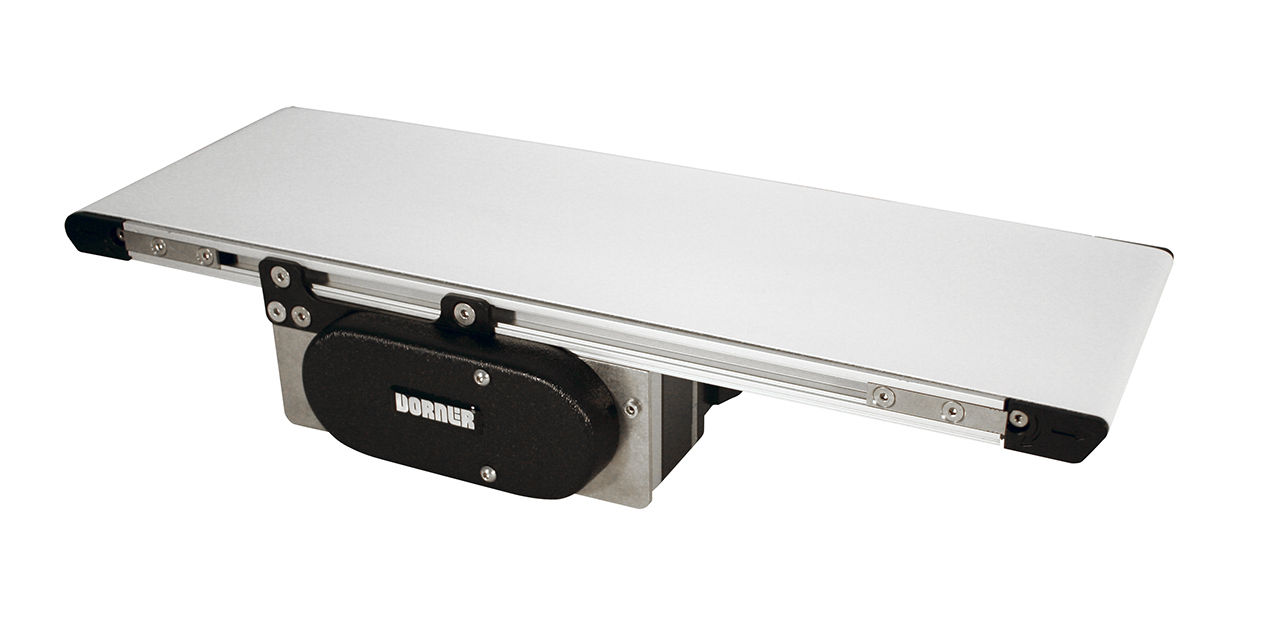

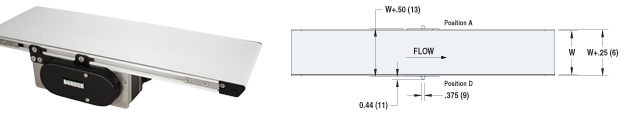

| Patented Center Drive | 32 mm diameter center drive pulley |
| Idler Pulley | 16 mm diameter idler pulley |

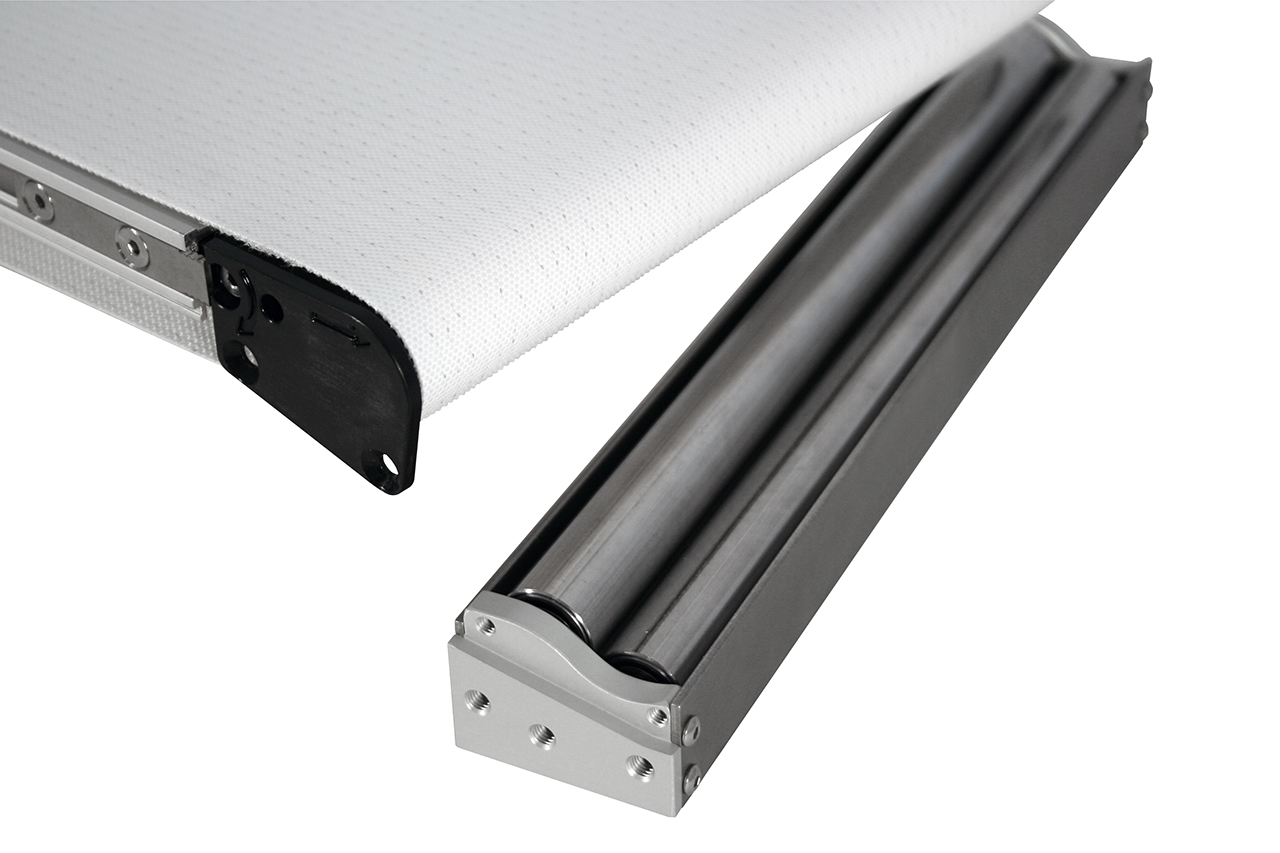

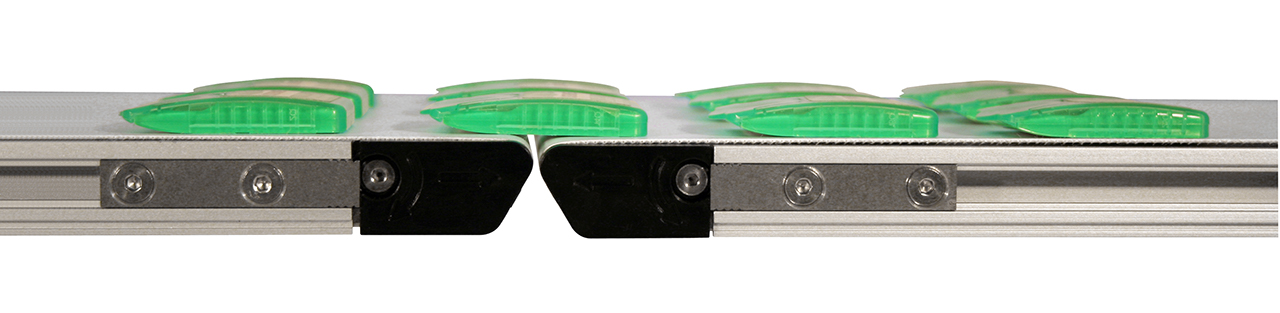

| Nose Bar Option | 8 mm nose bar option available on one or both ends |
| Belt Widths | 44 mm, 95 mm, 152 mm, 203 mm and 254 mm |
| Load Capacity | Up to 6.8 kg |
| Belt Speeds | Up to 21 m/min |

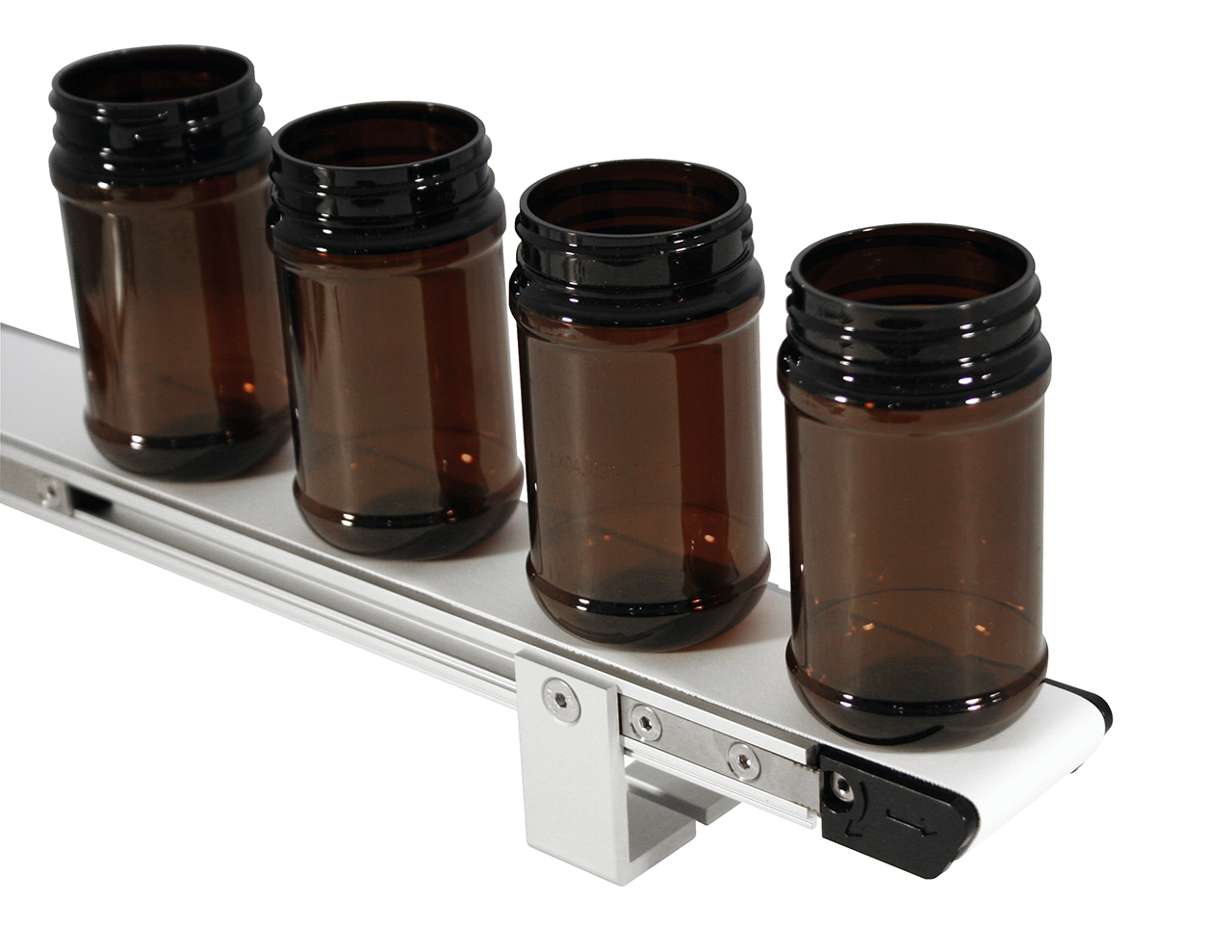

Low-Profile Design
Low-profile design saves valuable machine or working space. The small roller diameter is ideal for handling and transferring small or lightweight parts.
Maintenance-Free & Quick Replacement
Low belt tension virtually eliminates belt stretch, ensuring maintenance-free operation. Two-piece molded design allows quick belt replacement.
Reversible & Spring-Tensioned Drive
Reversible drive provides maximum flexibility for different applications. Features a spring-tensioned belt wrap around the drive pulley.
Cleanroom Certified
Class 100 certified. Fully optimized and safe for demanding use in medical and pharmaceutical cleanroom applications.

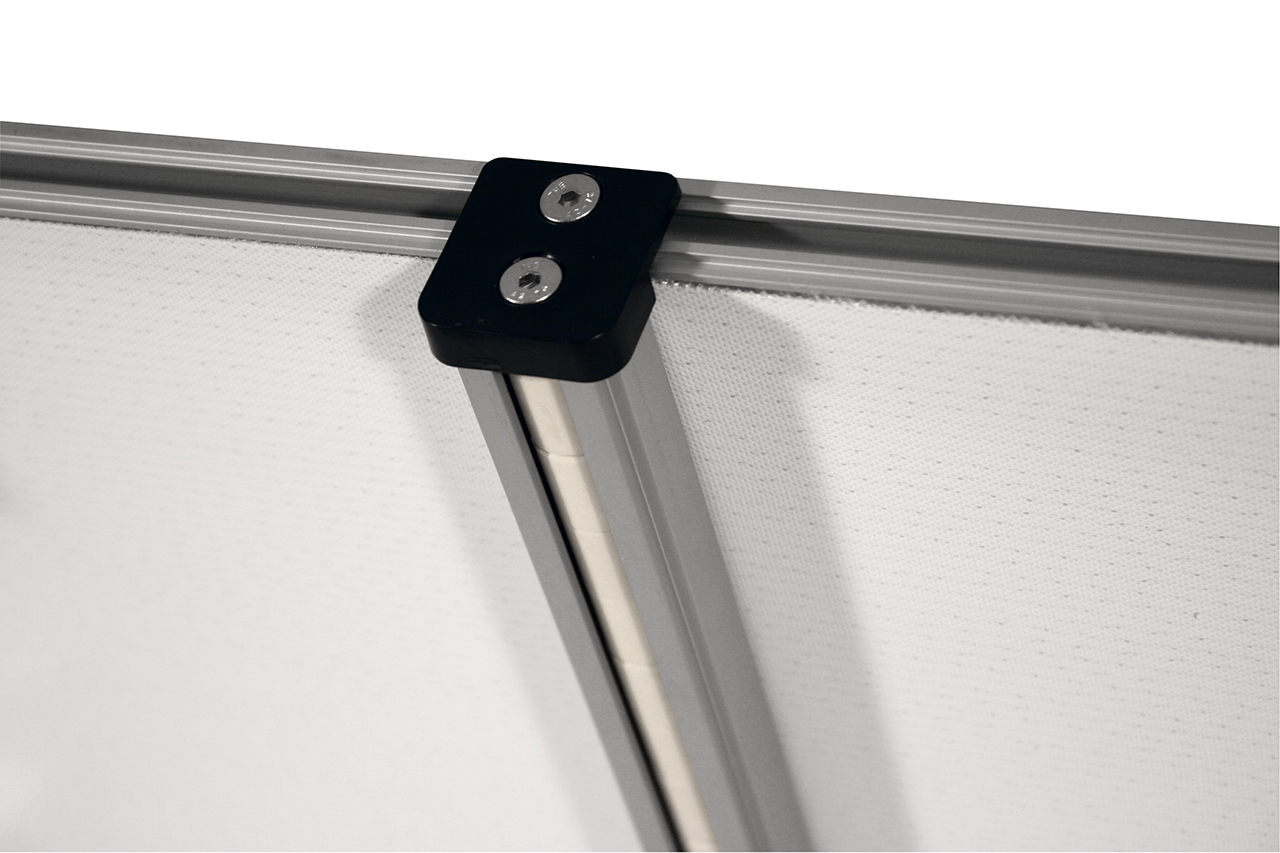

Flexible Mounting (T-Slot)
Integrated T-slot / T-bar design enables easy and flexible mounting of automation components, guides, and other machine accessories.

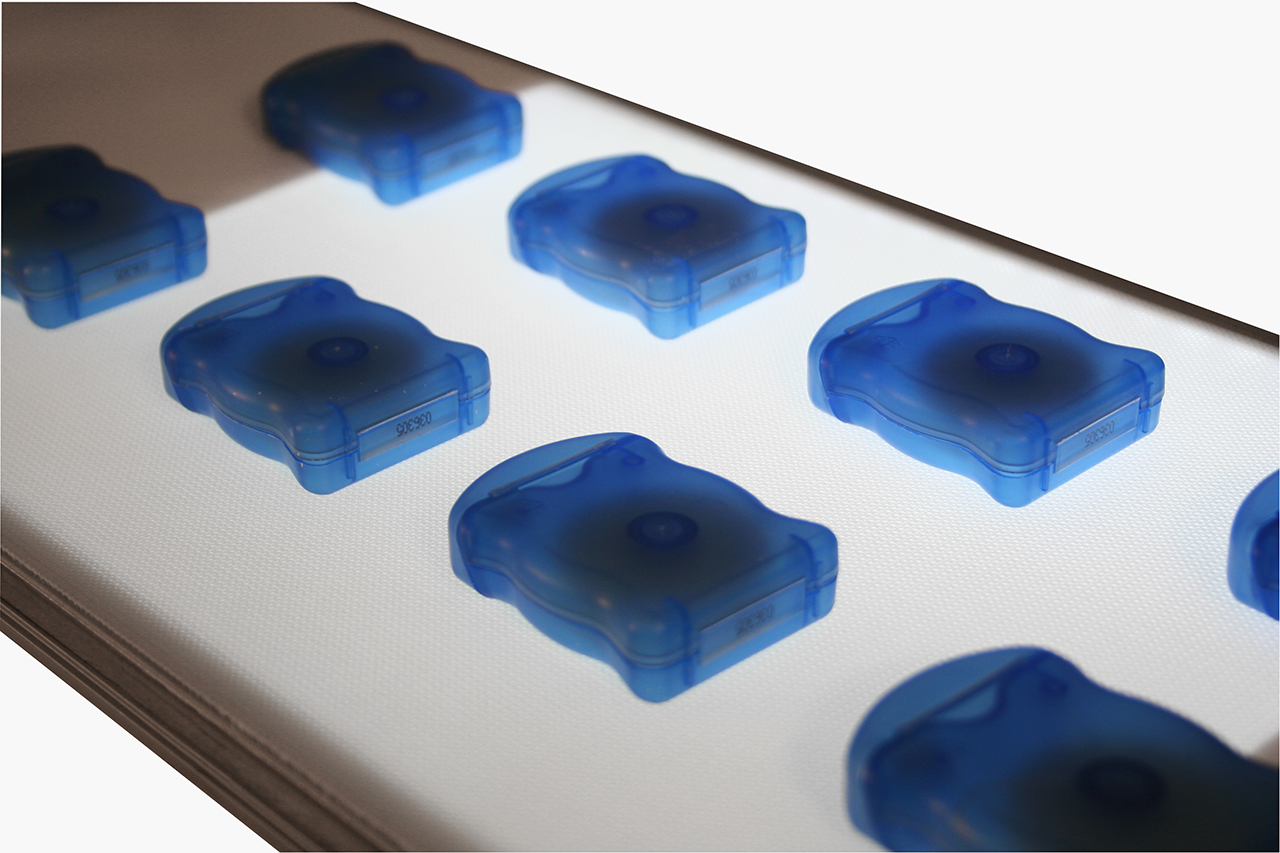

Backlight Capability
Conveyor option with integrated LED backlighting is ideal for precise part inspection, vision systems, and quality control applications.
