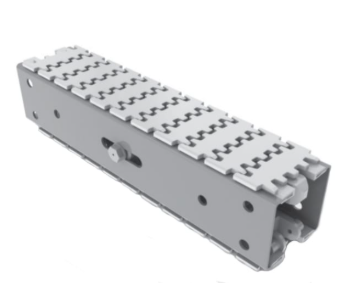

SS-65 Series Stainless Steel Conveyors
The SS Series is a corrosion-resistant conveyor solution engineered for horizontal and vertical transportation in environments requiring strict hygiene standards. Utilizing a stainless steel structure and a 63 mm chain width, it offers precise handling for smaller products. Example products include pharmaceutical containers, packaged foods, cosmetics, and small dairy or bottled items.
Benefits of SS 65 mm Stainless Steel Conveyors
The SS Conveyor is suitable for a wide range of applications either for horizontal or vertical product transportation.
Different Conveyor Chain Types
The SS multi-flexing conveyor systems uses a plastic chain that permits horizontal as well as vertical change of direction. In addition to the standard types, several special purpose chains are available.
| Parameter | Specification |
|---|---|
| Conveyor Chain Width | 63 mm |
| Min. Turning Radius | 150 mm |
| Link Spacing | 25.4 mm |
| Item Width Range | 15-140 mm |
| Max. Item Weight | 10 kg |
| Max. Weight on Conveyor | 150 kg |
| Max. Conveyor Length | 30 m |
| Standard Conveyor Speed | 3-50 m/min |
| Tensile Strength (at 20ºC) | 4000 N |
| Max. Working Tensile (at 20ºC) | 500 N |
| Chain Weight (Plain) | 0.75 kg/m |
| Working Temperature | 20ºC – 60ºC |
