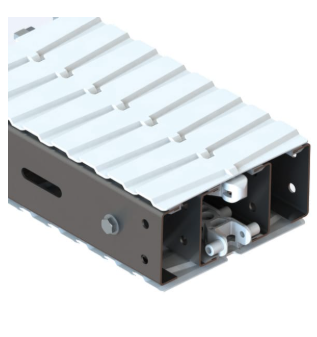

SU-180 Series Stainless Steel Conveyors
The SU Series is a robust, high-capacity stainless steel conveyor system engineered for horizontal and vertical product transportation in environments demanding exceptional hygiene and corrosion resistance. With an expanded 175 mm chain width, it provides outstanding stability for heavy, bulky, or wide products. Example products include large food trays, automated cleanroom transport, heavy-duty pharmaceutical batches, and massive packaged assemblies.
Benefits of SU 180 mm Stainless Steel Conveyors
The SU Conveyor is suitable for a wide range of applications either for horizontal or vertical product transportation.
Different Conveyor Chain Types
The SU multi-flexing conveyor systems uses a plastic chain that permits horizontal as well as vertical change of direction. In addition to the standard types, several special purpose chains are available.
| Parameter | Specification |
|---|---|
| Conveyor Chain Width | 175 mm |
| Min. Turning Radius | 500 mm |
| Link Spacing | 33.5 mm |
| Item Width Range | 50 – 400 mm |
| Max. Weight on Conveyor | 65 kg/m |
| Max. Conveyor Length | 30 m |
| Standard Conveyor Speed | 58 m/min |
| Tensile Strength (at 20ºC) | 4800 N |
| Max. Working Tensile (at 20ºC) | 1250 N |
| Chain Weight (Plain) | 2 kg/m |
| Working Temperature | -20 to 60 ºC |
