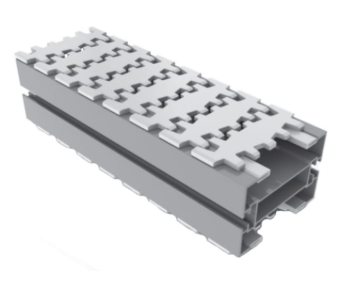

FC-105 Series Conveyors
The FC Series is a high-capacity conveyor solution engineered for horizontal and vertical transportation of larger items. Providing the highest load and transport capacity among the modular aluminum series, it ensures maximum stability and reliability for demanding production environments. Example products include larger boxes and heavy-duty packaged consumer goods.
Benefits of FC 105 mm Aluminum Conveyors
The FC Conveyor is suitable for wide range of applications either horizontal or vertically product transportation. Capacity higher than FK, FS, FM.
Different Conveyor Chain Types
The FC multi-flexing conveyor systems uses a plastic chain that permits horizontal as well as vertical change of direction. In addition to the standard types, several special purpose chains are available.
Examples of Products Handled
Larger boxes.
| Parameter | Specification |
|---|---|
| Conveyor Chain Width | 105 mm |
| Min. Turning Radius | 170 mm |
| Link Spacing | 35.5 mm |
| Item Width Range | 25-300 mm |
| Max. Item Weight | 20 kg |
| Max. Weight on Conveyor | 300 kg |
| Max. Conveyor Length | 30 m |
| Standard Conveyor Speed | 3-50 m/min |
| Tensile Strength (at 20ºC) | 6000 N |
| Max. Working Tensile (at 20ºC) | 1250 N |
| Chain Weight (Plain) | 1.67 kg/m |
| Working Temperature | -20ºC – 60ºC |
